Product Overview

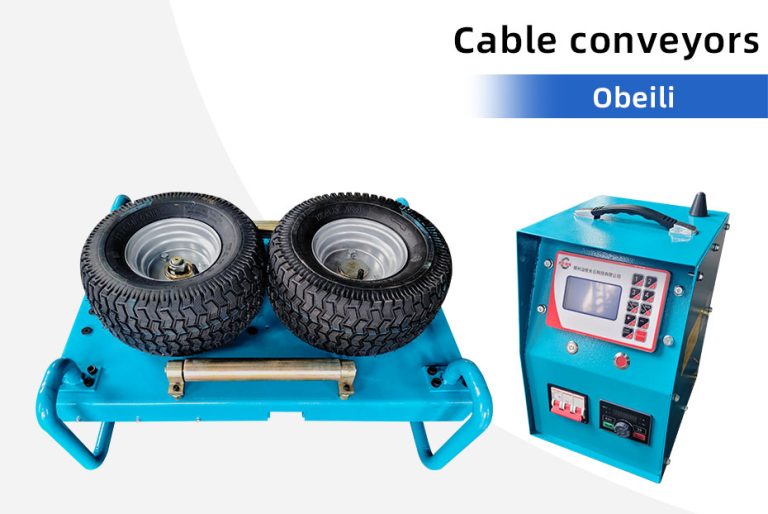

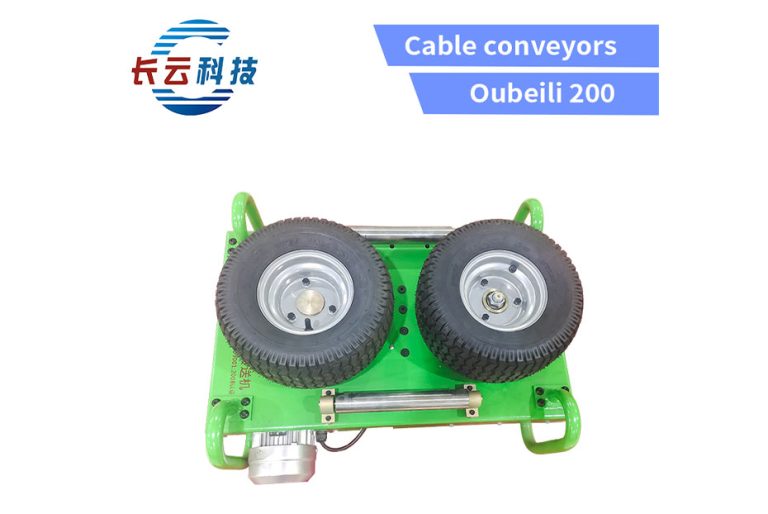

The Oubeili 200 is a compact, electric wheel-type cable pusher for installations where access and clearance are limited. Its published dimensions are 76 × 46 × 20 cm, with a listed weight of 60 kg. The specification gives 750W power, 380V voltage, stepless speed adjustment from 0 to 14.5 m/min and a cable diameter range of 10–100 mm. Check the working clearance and cable handling limits for the intended route.
Technical Parameter
| Model | Oubeili 200 |
| Power System | Electric motor |
| Power | 750W |
| Speed Range | 0-14.5m/min (stepless adjustment) |
| Traction Force | 200kg |
| Cable Diameter | 10-100mm |
| Weight | 60kg |
| Voltage | 380V |
| Dimensions | 76×46×20cm |
Features & Advantages
Core Features
Simple & Reliable
Low failure rate design
Compact Structure
Special low-height profile
Effortless Operation
No micro-adjustment required for clamping mechanism
Multi-Unit Control
Synchronized cable pulling capability
Versatile Application
Ideal for tight spaces and corner work
Technical Advantages
Space-Efficient Design
Perfect for confined installation areas
Labor-Saving
Automatic pressure adjustment reduces manpower
High Compatibility
Handles various cable types (10-100mm)
Smooth Operation
Stepless speed control for precise handling
Typical Applications
- Small-space cable laying projects
- Corner installations with limited space
- Telecommunication cable deployment
- Utility tunnel maintenance
Frequently Asked Questions
What cable sizes does the Oubeili 200 accommodate?
The published diameter range is 10–100 mm. Confirm suitability using the cable construction, weight per metre and handling limits as well as its diameter.
What power supply is listed?
The parameter table lists 750W power and 380V voltage. Confirm the required electrical supply and supplied control configuration before ordering.
How should I interpret the listed traction figure?
The existing table states “Traction Force: 200kg”. The force unit and test conditions require manufacturer confirmation. Do not convert this figure into a verified force rating or use it alone to calculate installation capacity.
What information is needed for a quotation?
Send cable specifications, route length, bends, working clearance, available power, quantity and destination. Include photos or a drawing of confined sections so the proposed configuration can be checked.
