Product Overview

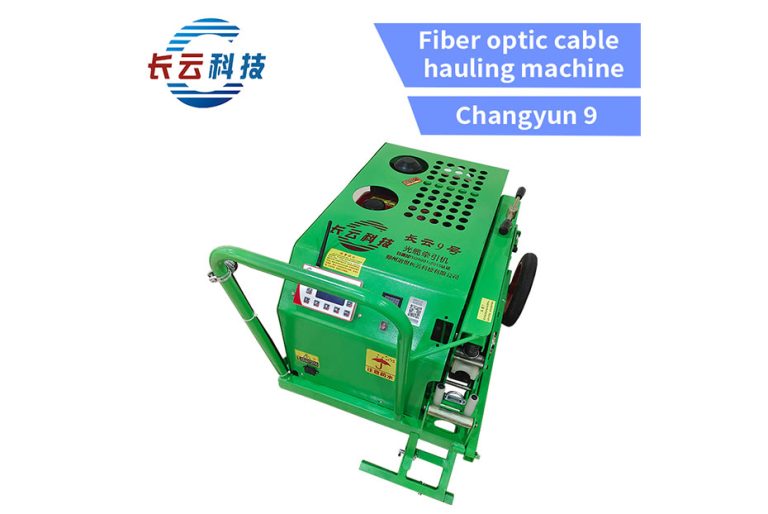

The Changyun 9 is a diesel-powered optical cable tractor featuring a vibrant green body with reinforced crawler transmission. Designed for demanding field operations, it delivers 4200N pulling force with dual control options (keypad + remote) for efficient cable installation.
Changyun Technology Advantages
• Independent R&D and manufacturing
• Complete after-sales service system
• Energy-efficient operation
Technical Parameter
| Model | Changyun 9 |
| Power System | Diesel generator |
| Starting Method | Manual hand-crank |
| Motor Power | 1200W |
| Pulling Force | 4200N (max) |
| Control Methods | Keypad + wireless remote |
| Transmission | Reinforced crawler belt |
| Speed Range | 0-80m/min |
| Speed Adjustment | 4-gear + stepless |
| Clamping System | Quick-release mechanism |
| Max Cable Opening | 5cm |
| Cable Compatibility | 4-288 core fibers |
| Dimensions | 95×78×80cm |
| Weight | 97kg |
Features & Advantages
Core Features
Dual Control System
Instant operation via keypad or remote
Precision Speed Control
4-gear + stepless adjustment
Crawler Transmission
High-tensile force without cable damage
Quick-Clamp Mechanism
Efficient cable loading/unloading
Fuel-Efficient
Diesel-powered with stable operation
Technical Advantages
High-Torque Performance
4200N pulling capacity
Wide Speed Range
0-80m/min precise control
Manual Mobility
Easy positioning with hand-walking
Compact Design
Space-saving 97kg construction
Applications
- Long-distance fiber optic deployments
- Underground conduit installations
- Telecom maintenance projects
- Remote area cable pulling
Operation Notes
- Regular crawler belt maintenance recommended
- Complete stop required for gear shifting
- Uses standard diesel fuel
