Product Overview

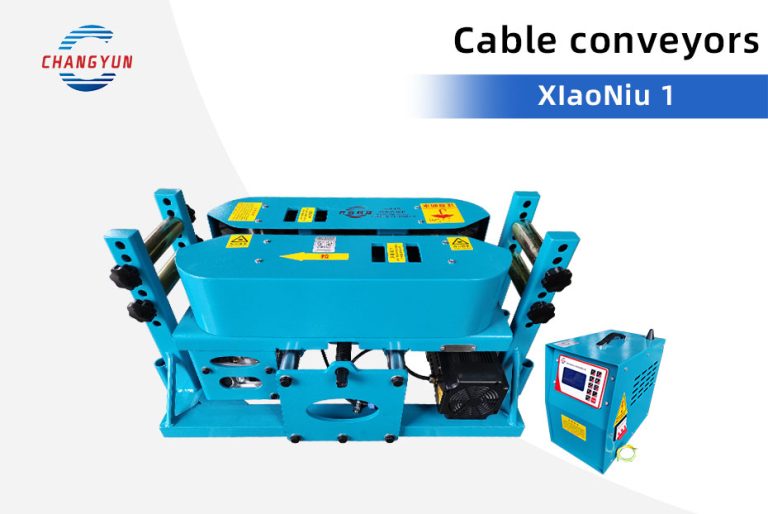

The Conveyor Cable Conveyor – XiaoNiu1 is a high – performance device designed for efficient cable – conveying operations. It combines advanced technology with user – friendly features to meet the diverse needs of cable – laying projects.
Technical Parameter
| Model | XiaoNiu1 |
| Power Supply | Standard: AC380V / Customizable: AC220V |
| Control Method | The machine offers dual – control modes: control panel and remote control. The control panel allows for on – site precise operation, while the remote control provides flexibility and convenience, enabling operators to manage the machine from a distance, especially in hard – to – reach areas. |
| Power | The total power of the device is 1500W x 2, ensuring strong and stable power output for smooth cable – conveying tasks. |
| Conveying Speed | The conveying speed can be adjusted within the range of 4 – 22m/min. This adjustable speed feature allows for adaptation to different project requirements and cable – laying conditions, improving work efficiency. |
| Maximum Tensile Force | With a maximum tensile force of 5500N, the machine can handle various types of cables firmly, preventing cable slippage during the conveying process and ensuring the safety and integrity of the cables. |
| Cable Diameter | It is suitable for cables with a diameter ranging from 1cm to 12cm, covering a wide range of cable specifications commonly used in different projects. |
| Dimensions | The overall dimensions of the machine are 87 * 49 * 45cm. Its compact size makes it easy to transport and maneuver in different working environments, especially in confined spaces such as bridges and narrow areas. |
| Net Weight | The net weight of the machine is 128kg. Its relatively light weight, combined with its small size, enables easy handling and installation at the construction site. |
Features
Product Features
Easy Access to Well – openings
It can easily enter well – openings with a diameter of 60cm, which is very practical for cable – laying operations in well – related projects.
Simple and Convenient Operation
The control interface is designed to be user – friendly, reducing the learning curve for operators and improving work efficiency.
Suitable for Bridges and Narrow Areas
Its compact design and maneuverability make it an ideal choice for cable – laying in bridge structures and other narrow working areas.
High – quality and Durable
The machine is equipped with high – quality wear – resistant rubber blocks. These rubber blocks are thickened for enhanced durability and wear resistance, ensuring stable cable – conveying without slipping.
Notes
The product parameters are closely related to the working conditions. Different working conditions, such as cable slippage or environmental changes, may lead to differences in the parameters. In case of any parameter changes, no further notice will be given separately.
