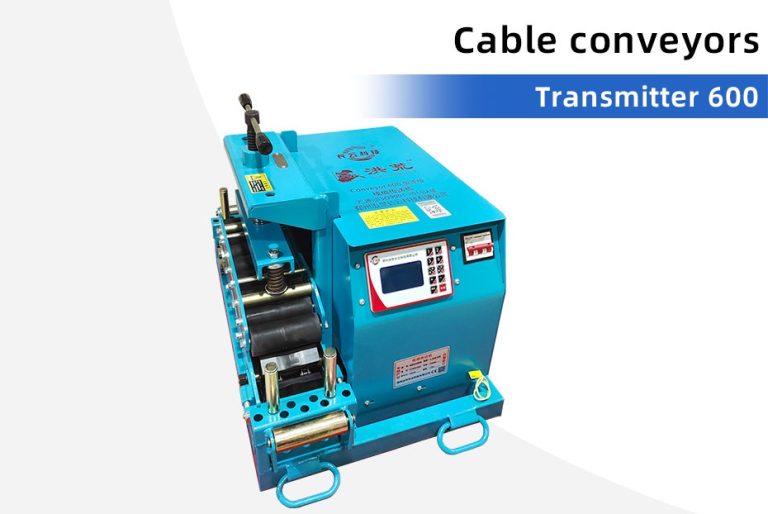

Conveyor Transmitter 600 Cable Conveyor

Model
Conveyor600 Transmitter
Standard
AC380V
Customizable
AC220V

    Product Overview

    The Cable Conveyor is driven by electric motors, which transmit power to a set of rubber crawler tracks via a reduction gear mechanism. By adjusting the gap between the left and right tracks, the clamping force applied to the cable can be precisely controlled, thereby propelling the cable forward at a constant speed and ensuring a smooth, damage-free installation process.

    Working Principle

    Driven by an electric motor, the cable conveyor transmits power to the rubber tracks or rollers through a reduction gearbox. The upper and lower tracks clamp the cable with adjustable pressure to generate stable friction, which pushes the cable forward at a constant speed. For long-distance laying, multiple units can work synchronously to provide uniform thrust, ensuring smooth and damage-free cable installation.

    Technical Parameter

    ModelConveyor600 Transmitter
    StandardAC380V
    CustomizableAC220V
    Speed Control4 preset gears + stepless speed adjustment
    Control MethodsControl panel + remote control/Multi-unit synchronized control
    Power1500W
    Conveying Speed4~22 m/min
    Optimal range10–16 m/min (Gears 2 & 3)
    Max Tension3800N
    Cable Diameter Range1–10 cm
    Dimensions (L×W×H)74 × 46.5 × 55.5 cm
    NoteProduct images are for reference only; actual product may vary.
    Net Weight86 kg

    Application Areas

    cable conveyor-900-1
    cable conveyor-3
    cable pusher-900

    Power Engineering: Cable laying projects within underground conduits, integrated utility tunnels, cable trenches, or tunnels.
    Transportation & Energy Infrastructure: Suitable for high-speed rail stations, urban rail transit systems, new energy power plants, and large-scale refinery projects; applicable to both cable installation in new construction and cable retrofitting in existing facilities.
    Large-Scale Infrastructure Projects: Ideal for laying main power cables in nuclear power plants, hydroelectric power stations, and high-rise buildings.
    Long-Distance Power Transmission: Suitable for on-site direct-burial cable laying and overhead cable tray installation in long-distance power transmission projects.
    Power Construction: Laying of fiber optic cables, power cables, and building wiring.

    Key Features & Advantages

    Flexible and Portable: Compact in size and lightweight, facilitating easy handling within narrow tunnels and manholes.

    Dual-Motor Drive—Efficient & Labor-Saving: The thrust generated by a single unit is equivalent to the pulling force of 10 manual laborers. When multiple units operate in tandem, the overall construction cycle can be shortened by up to 65%.

    Cable Protection—Safe & Reliable: Equipped with flexible tracks or rubber rollers to prevent scratching or twisting of the cable; features built-in overload protection to effectively mitigate construction risks. Ensures high-quality cable laying.

    Stable and Controllable: The conveying speed is infinitely adjustable within the range of 4–26 meters/minute, enabling smooth starts and stops.

    Product Advantages

    • Applicaton(Business Areas)-Adding
    • Videos Show-Adding
    01
    02
    03
    04
    05
    06
    07

    Conveyor Transmitter 600 Cable Conveyor: FAQ

    What supply does Transmitter 600 use?

    AC380V is standard and AC220V is customizable. Motor power is 1500W.

    Which cable sizes and conveying speed are listed?

    The cable diameter range is 1–10 cm and conveying speed is 4–22 m/min. Maximum tension is 3800N.

    Can Transmitter 600 work with other units?

    Multi-unit synchronized control is listed. Confirm the compatible machines, controller and connection accessories for the proposed route.

    How do I request a quotation or spare parts?

    Send the model, cable or load details, required configuration, quantity and destination. For parts, include the machine identification and component photos.

    Request this model’s configuration and quote

    Conveyor Transmitter 600 Selection and Configuration

    The listed dimensions are 74 × 46.5 × 55.5 cm and the net weight is 86 kg. Send cable specifications, route layout, number of units and available supply voltage.

    Which cable sizes are listed for the Conveyor Transmitter 600?

    The published cable diameter range is 1–10 cm and the maximum tension is 3800N. Check cable weight and handling limits along with diameter.

    What power configuration does the Conveyor Transmitter 600 use?

    The table lists AC380V as standard and AC220V as customizable, with a 1500W motor. Confirm the selected voltage configuration when ordering.

    What controls and speed are listed for this model?

    Four preset gears, stepless speed adjustment and a 4–22 m/min range are listed. Panel, remote and synchronized multi-unit control are described; confirm controller compatibility.

    Request a Conveyor Transmitter 600 Quote

    Send cable diameter, weight per metre, route length, bends, power availability, quantity and delivery destination. Request a quote on WhatsApp or send your project enquiry. Include the model name so we can discuss its configuration.

    Compare cable conveyors and cable pushers and review our equipment selection checklist.

    Plan the Transmitter 600 Roller and Guide Package

    Send a labelled route sketch showing the conveyor position, straight sections, corners and entry points. Include the cable datasheet and mounting photos so the rollers and guides can be specified for the proposed installation.

    • Check each accessory’s cable capacity and rated load separately from the powered conveyor.
    • Identify ground, tray or entry-guide mounting requirements and the supporting structure.
    • Ask for accessory model numbers, quantities and drawings, with included and optional items listed separately.
    • Confirm the cable manufacturer’s bending and handling limits before approving the route arrangement.

    Use the cable conveyor roller selection checklist and review our installation accessories. Request a Transmitter 600 and accessory quotation with your cable and route details.
