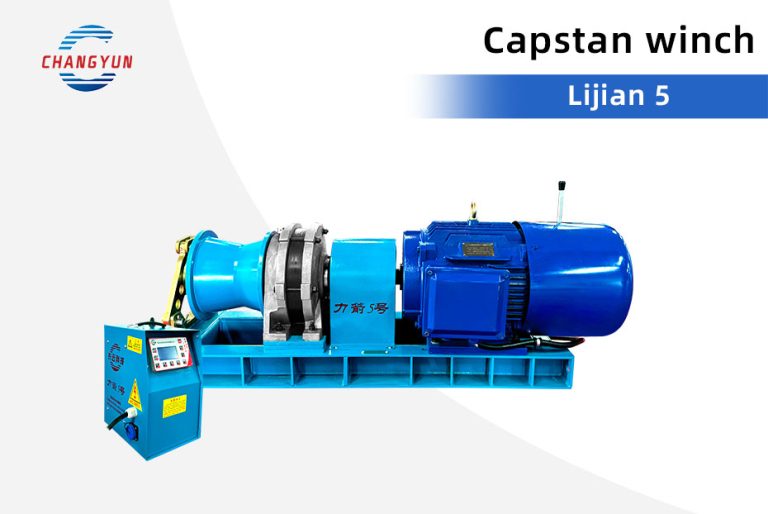

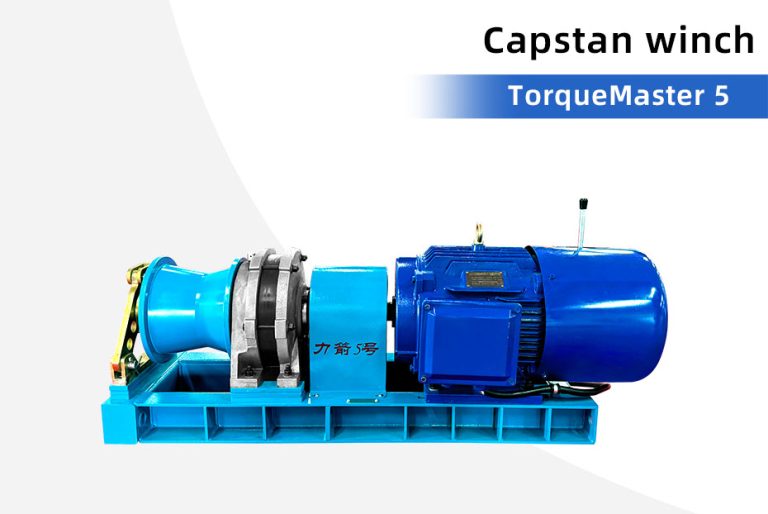

Product Overview
This electric winch machine, manufactured by Changyun Technology, is a high – performance piece of equipment designed for various applications that require reliable pulling and hoisting operations. The model is “Lijian No.5”.
Technical Parameter
| Maximum Pulling Force | 50KN, which enables it to handle heavy – duty tasks with ease. |
| Speed | The operating speed ranges from 5 – 20m/min, providing flexibility for different work requirements. |
| Power | With a power rating of 7.5kw, it ensures efficient and stable operation. |
| Power Supply | It operates on AC380V, suitable for most industrial power systems. |
| Speed Adjustment Method | Features stepless speed regulation, allowing for precise control of the winching speed according to the specific needs of the task. |
| Control Method | Equipped with both a control panel and a remote control, providing convenient operation options. Operators can choose to control the machine on – site via the control panel or from a distance using the remote control. |
| Motor Configuration | The motor is configured with an automatic braking system that activates when the power is cut off, enhancing safety during operation. |
| Dimensions | The overall dimensions of the machine are 119X33X43cm, making it relatively compact for easy handling and placement in different work environments. |
| Net Weight | Weighs 220kg, which contributes to its stability during operation. |
Features
Product Features
Powerful Motor
The high – quality copper – core motor provides a large pulling force, fast speed, and stable operation. It can effectively handle heavy loads without sacrificing performance.
Stepless Speed Regulation
This feature allows for smooth and precise speed adjustment, which is crucial for tasks that require fine – tuned control, such as delicate hoisting or pulling operations.
Dual – control System
The combination of a control panel and a remote control offers operators more flexibility. They can operate the machine conveniently, whether they are near the machine or at a safe distance.
Safety – first Design
The automatic braking system in case of power failure acts as a reliable safety feature, preventing sudden and unexpected movements of the winch, thus reducing the risk of accidents.
Separate Electrical Box Control
The separately arranged electrical box makes the machine easy to move and operate. It also simplifies the installation and maintenance process.
Shock – resistant and Efficient Transmission
The shaft transmission system is designed to be impact – resistant and vibration – resistant, with high transmission efficiency. It is not prone to heating or slipping during operation, ensuring continuous and reliable performance.
Durable Structure
The high – strength reduction gearbox and gear set are built to last. They ensure smooth operation without jamming, even under heavy – load conditions.
Robust Drum
The thickened drum is highly resistant to pressure and wear, maintaining its shape and performance over long – term use. It can withstand the repeated stress of pulling and hoisting operations.
Notes
It should be noted that the above parameters are based on routine laboratory data. Deviations may occur when the usage method is improper, slipping happens, or the machine is affected by the environmental conditions.
