Product Overview

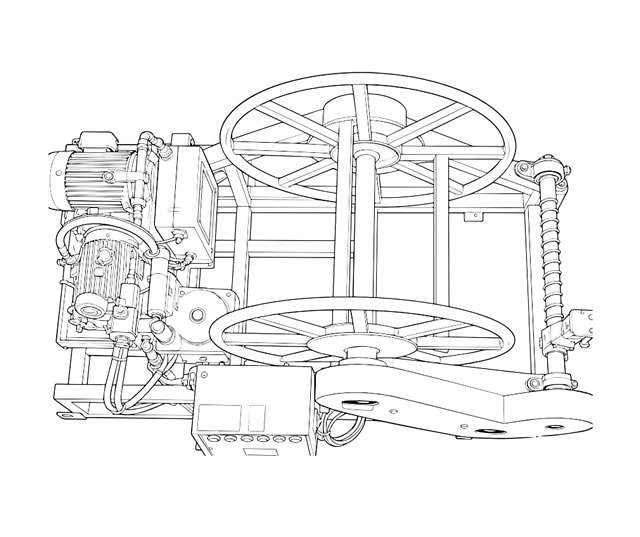

The WRRW-HD-1000 Hydraulic Wire Rope Reel Winder automatically collects and rewinds the steel wire rope discharged by a cable capstan winch during underground cable installation.
Its synchronized hydraulic system adjusts the take-up speed to match the wire rope output of the winch, maintaining controlled tension and orderly winding. This helps prevent loose rope from tangling or accumulating around the work area.
By replacing manual trailing-rope handling, the machine reduces labor requirements and helps lower the risk of operator entanglement and rope snapback. It is an efficient wire rope recovery solution for underground cable laying and power construction projects.
Key Features
1. Automatic Synchronized Take-Up
The winding speed automatically matches the wire rope output speed of the cable capstan winch, providing smooth and controlled rope recovery.
2. Safer Wire Rope Handling
Automatic take-up reduces manual contact with moving wire rope and helps keep the jobsite clear and organized.
3. Reliable Hydraulic System
The precision-sealed hydraulic system provides stable operation while helping minimize oil leakage in dusty and humid outdoor environments.
4. Strong and Flexible Design
The high-strength steel frame provides excellent stability and durability. Remote and onboard controls support flexible operation under different jobsite conditions.
Applications
Suitable for:
- Underground power cable installation
- Cable duct and tunnel projects
- Power grid and substation construction
- Industrial cable laying
- Utility and EPC projects
Product Specifications
| Specification | Details |
|---|---|
| Model | WRRW-HD-1000 |
| Drive System | Hydraulic Drive |
| Input Voltage | AC 220V / AC 380V / Custom Voltage |
| Control Mode | Remote Control / Onboard Control Box |
| Maximum Take-Up Speed | 26 m/min |
| Rated Tension | 1,000 N |
| Wire Rope Diameter | 14 mm / 16 mm / 18 mm |
| Reel Capacity | 620 m at 14 mm; 500 m at 16 mm; 400 m at 18 mm |
| Operating Modes | Take-Up; Pressure Hold; Payout; Depressurization |
| Frame Material | High-Strength Structural Steel |
| Dimensions | 1,600 × 900 × 820 mm |
| Net Weight | 240 kg |
Request a Quote
Send us your cable capstan winch model, wire rope diameter, rope length, required voltage and delivery destination. We will recommend the appropriate configuration and provide a quotation.
