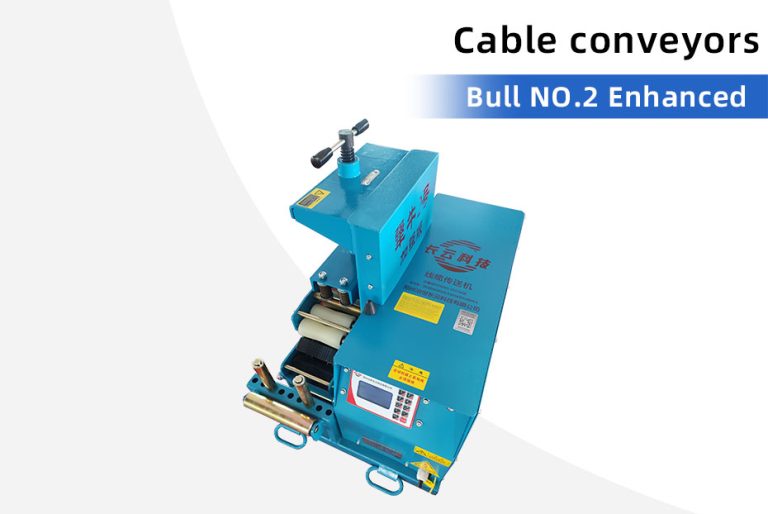

Conveyor bull NO.2 Strengthen

Model
Conveyor bull NO.2 Strengthen
Power Supply
Standard: AC380V Customizable: AC220V
Manufacturer
keepapexpower

    Technical Parameter

    Speed Control 4 preset gears + stepless speed regulation
    Control Modes Control panel + remote wireless control /Single unit speed fine-tuning
    Power3000W
    Conveying Speed 4–36 m/min
    Max Tension 5000N
    Cable Diameter Range 1-18 cm
    Conveying Method single-wheel drive
    Dimensions (L×W×H) 90 × 53 × 67 cm
    Net Weight 125 kg

    Core Features

    01
    02
    03
    04
    05
    06
    07

    Conveyor bull NO.2 Strengthen: FAQ

    What cable range and drive arrangement are listed?

    Bull No.2 Strengthen lists 1–18 cm cables and single-wheel drive.

    What power, force and speed are listed?

    The table lists 3000W, 5000N maximum tension and a 4–36 m/min conveying range.

    Which controls and supply details should I confirm?

    Panel and wireless control with speed fine-tuning are listed. Request the exact input voltage, phase and frequency before ordering.

    How do I request a quotation or spare parts?

    Send the model, cable or load details, required configuration, quantity and destination. For parts, include the machine identification and component photos.

    Request this model’s configuration and quote

    Bull No.2 Strengthen Selection and Configuration

    Send cable specifications, route length and bends, power availability and access details. The listed dimensions are 90 × 53 × 67 cm and the net weight is 125 kg.

    Which cable sizes are listed for the Bull No.2 Strengthen?

    The listed cable diameter range is 1–18 cm and the maximum tension is 5000N. Confirm the cable construction and handling limits before equipment selection.

    What power configuration does the Bull No.2 Strengthen use?

    The published table lists 3000W power. Request confirmation of supply voltage and electrical requirements, which are not specified in this table.

    What controls and speed are listed for this model?

    Four preset gears, stepless regulation and single-unit speed fine-tuning are listed. The published range is 4–36 m/min, with panel and remote wireless controls.

    Request a Bull No.2 Strengthen Quote

    Send cable diameter, weight per metre, route length, bends, power availability, quantity and delivery destination. Request a quote on WhatsApp or send your project enquiry. Include the model name so we can discuss its configuration.
