Bull No. 2 Cable Conveyo

Model
Jiangniu2
Power Supply
AC380V (standard) / AC220V (customizable)
Weight
Approx. 125kg
keepapexpower Innovating Smarter Cable Solutions

    Product Overview

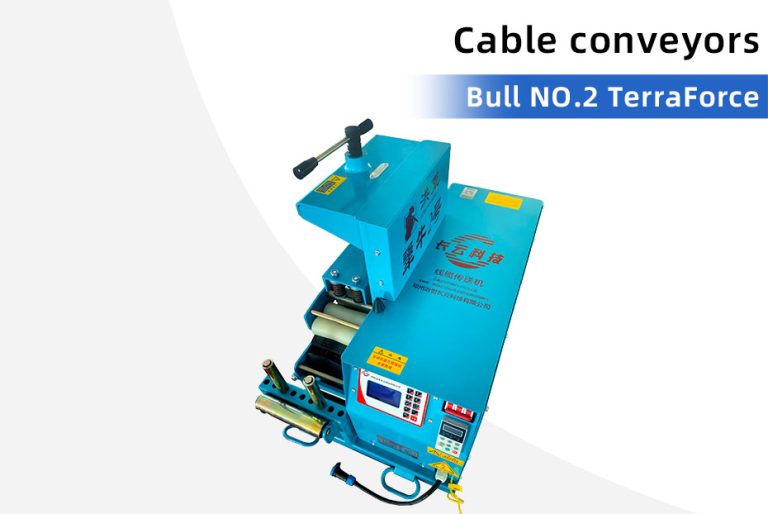

    The Bull No. 2 is an advanced cable conveyor featuring a distinctive blue body with intuitive control panel and included remote control. Designed for versatile applications, it combines powerful performance with intelligent operation.

    Technical Parameter

    Model Bull No. 2
    Power Supply AC380V (standard) / AC220V (customizable)
    Motor Power 3000W high-quality copper-core motor
    Speed Control 4-gear + stepless speed regulation (4-26m/min)
    Optimal Speed 10-16m/min (Gear 2 & 3)
    Max Pulling Force 5500N
    Cable Diameter 1-18cm
    Dimensions 90×53×67cm
    Weight Approx. 125kg

    Features & Advantages

    Typical Applications

    • Power transmission line construction
    • Telecommunication network deployment
    • Industrial cable installation
    • Tunnel and underground projects
    01
    02
    03
    04
    05
    06
    07

    Bull No. 2 Cable Conveyo: FAQ

    What electrical supply does Bull No.2 use?

    The model lists a 3000W motor, standard AC380V and customizable AC220V.

    What cable sizes and force are listed?

    The cable diameter range is 1–18 cm and maximum pulling force is 5500N.

    What speed range is listed?

    Four-gear and stepless adjustment covers 4–26 m/min. Select the working speed against the cable and route requirements.

    How do I request a quotation or spare parts?

    Send the model, cable or load details, required configuration, quantity and destination. For parts, include the machine identification and component photos.

    Request this model’s configuration and quote

    Bull No.2 Selection and Configuration

    Provide cable diameter and weight, route bends, available power and access clearance. The table lists 90 × 53 × 67 cm dimensions and approximately 125 kg weight.

    Which cable sizes are listed for the Bull No.2?

    The table lists 1–18 cm cable diameter and 5500N maximum pulling force. Confirm cable handling limits and installation resistance before choosing equipment.

    What power configuration does the Bull No.2 use?

    AC380V is standard, while AC220V is listed as customizable. The listed motor power is 3000W. Specify the required voltage with your enquiry.

    What controls and speed are listed for this model?

    The listed speed range is 4–26 m/min with four gears and stepless regulation. The 10–16 m/min reference for gears 2 and 3 should be checked against the installation plan.

    Request a Bull No.2 Quote

    Send cable diameter, weight per metre, route length, bends, power availability, quantity and delivery destination. Request a quote on WhatsApp or send your project enquiry. Include the model name so we can discuss its configuration.

    Compare cable conveyors and cable pushers and review our equipment selection checklist.
