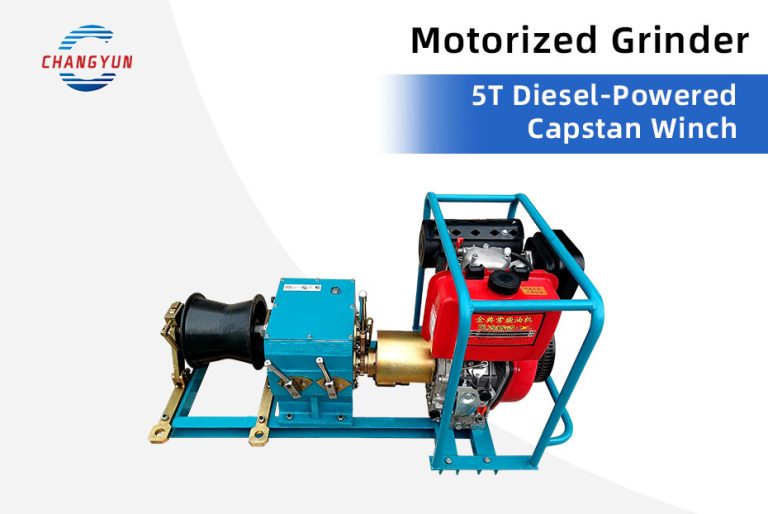

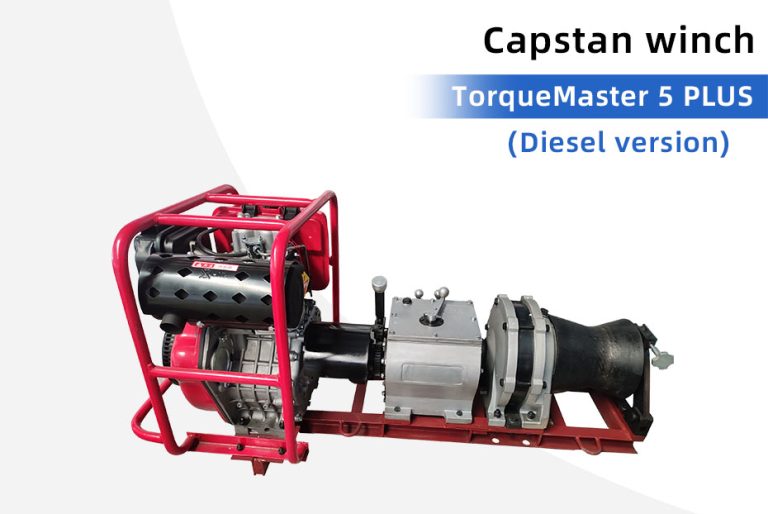

Capstan Winch Torque Master 5 PLUS Diesel version

Model
5T Diesel Motorized Grinder (Shaft – driven)
Rated Pulling Force​​
50KN
Weight
Approximately 165 kg

    Product Overview

    This 5T diesel motorized grinder, manufactured by Apex, is a robust and reliable piece of equipment designed for heavy – duty pulling tasks. It combines powerful performance with user – friendly features, making it suitable for a variety of applications, especially in mountainous and field construction environments.

    Technical Parameter

    Model​​ 5T Diesel Motorized Grinder (Shaft – driven)
    Rated Pulling Force​​ 50KN
    Overall Dimensions​​ 112 * 57 * 58 cm
    Product Weight​​ Approximately 165 kg

    Performance Parameter

    The grinder offers multiple gears, providing flexibility in different working scenarios:


    ​​Forward Gear 1​​: Maximum pulling force of 50KN and a pulling speed of 4.5 m/min. This gear is ideal for tasks requiring high – force and relatively slow – speed pulling, such as anchoring heavy equipment or pulling large – diameter cables.

    ​​Forward Gear 2​​: With a maximum pulling force of 26KN and a speed of 8.5 m/min, it is suitable for medium – force applications where a bit more speed is needed, like pulling medium – sized loads over moderate distances.

    ​​Forward Gear 3​​: Delivers a maximum pulling force of 20KN at a speed of 11 m/min. It can be used for tasks that require a balance between force and speed, such as general – purpose pulling in construction sites.

    ​​Forward Gear 4​​: Offers a maximum pulling force of 10KN and a speed of 23 m/min. This gear is perfect for light – duty pulling tasks or when quick movement of the load is required.

    ​​Reverse Gear 1​​: Pulling speed is 3.5 m/min without a specified maximum pulling force. It is mainly used for re – positioning the grinder or adjusting the position of the load in the reverse direction.

    ​​Reverse Gear 2​​: Has a pulling speed of 9 m/min without a specified maximum pulling force, providing a faster reverse – movement option.

    Features

    Power Options

    Customers have the choice between gasoline and diesel power. This flexibility allows the grinder to be used in areas where different fuel sources are more readily available, enhancing its adaptability to various working conditions.

    Applications

    This 5T diesel motorized grinder is widely used in mountainous and field construction projects. It can be applied in tasks such as pulling power lines, laying pipelines, and installing communication facilities in remote areas. Its portability and powerful performance make it an essential tool for these challenging working environments.

    01
    02
    03
    04
    05
    06
    07

    Capstan Winch Torque Master 5 PLUS Diesel version: FAQ

    What is the rated force of Torque Master 5 PLUS Diesel?

    The rated pulling force is 50kN.

    What are its dimensions and weight?

    The listed dimensions are 112 × 57 × 58 cm and weight is approximately 165 kg.

    What should be confirmed for a pulling project?

    Provide the required pulling load and route. Request the engine configuration, rope specification, anchoring requirements and operating manual.

    How do I request a quotation or spare parts?

    Send the model, cable or load details, required configuration, quantity and destination. For parts, include the machine identification and component photos.
