Product Overview

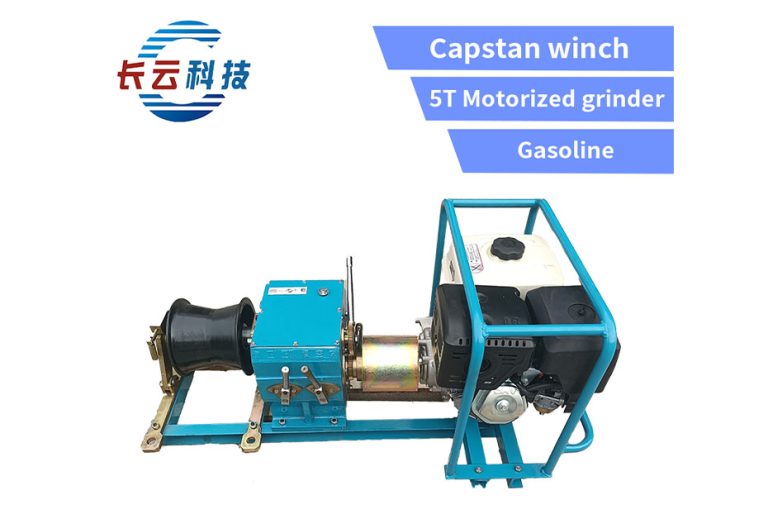

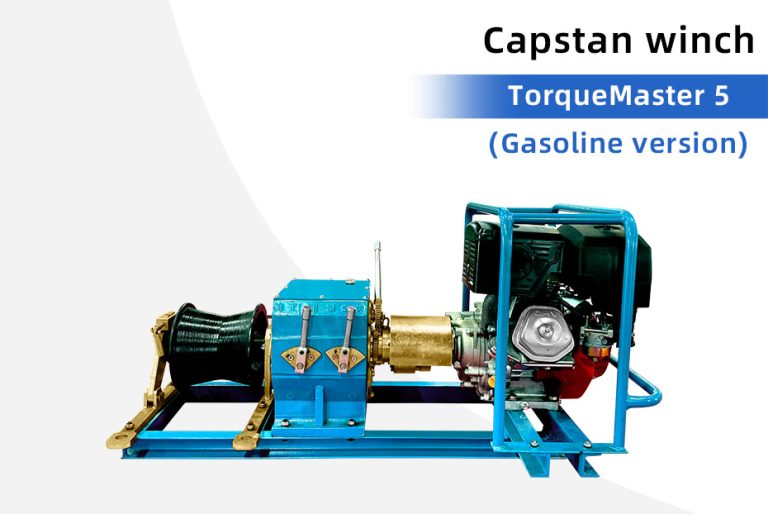

5T Gasoline Capstan Winch Vedio
- The APEX winch has been independently developed specifically for heavy-duty applications in the power, mining and bridge-building sectors. Drawing on extensive real-world data from construction sites, we have continuously refined the design to address industry challenges such as complex terrain, high-difficulty towing operations and instability during prolonged continuous use. As the cornerstone of a comprehensive towing solution, the APEX redefines the standard for domestically manufactured winches with its exceptionally robust construction and safe operation.
- The winch is a core power unit specifically designed for heavy-duty towing, lifting and repositioning operations in complex working conditions. Combining high-torque output technology with a precision braking system, it provides continuous, stable and safe power support for a wide range of applications, from power line installation and transport in mine tunnels to the hoisting of large-scale equipment. With its compact design and flexible operation, it is an indispensable and highly efficient aid in modern engineering projects.
Technical Parameter
| Model | 5T Shaft-Drive Grinder | Forward Gear 1: 50KN at 4.5m/min |
| Power Options | Gasoline/Diesel (selectable) | Forward Gear 2: 26KN at 8.5m/min |
| Rated Traction Force | 50KN | Forward Gear 3: 20KN at 11m/min |
| Dimensions | 112×57×58cm | Forward Gear 4: 10KN at 23m/min |
| Weight | 155kg | Reverse Gear 1: 3.5m/min |
| Transmission | High-strength shaft coupling | Reverse Gear 2: 9m/min |
Applications
Mountainous cable installation,Wild terrain construction,Power line maintenance,Telecommunication projects
Features & Advantages
Core Features
Dual Fuel System
Choose between gasoline or diesel power
4+2 Gear System
Precise speed and force control
Heavy-Duty Coupling
Reinforced shaft transmission
High Torque Output
Ensures operational safety
Field-Ready Design
Rugged construction for tough environments
Variable Speed Control
4 forward + 2 reverse gears
50KN Maximum Force
Rugged construction for tough environments
Reliable Transmission
Shaft-driven power delivery
All-Terrain Capability
Performs in remote locations
Technical Advantages
High Performance
Equipped with a high-performance diesel engine/electric motor, providing a rated traction force of up to 5 tons. A unique low-speed, high-torque design ensures no power loss during full-load starts and hill climbing, easily handling extreme load challenges.
Safer
Features an industrial-grade normally closed brake and overload protection system, achieving an “instant braking upon power failure” safety mechanism.
Extremely Durable
The machine body uses a high-strength alloy steel welded frame, extending its service life by 3-5 years.
Easy Maintenance
Key components utilize a modular layout, reducing routine maintenance and troubleshooting time by 50%, minimizing downtime and ensuring project progress.

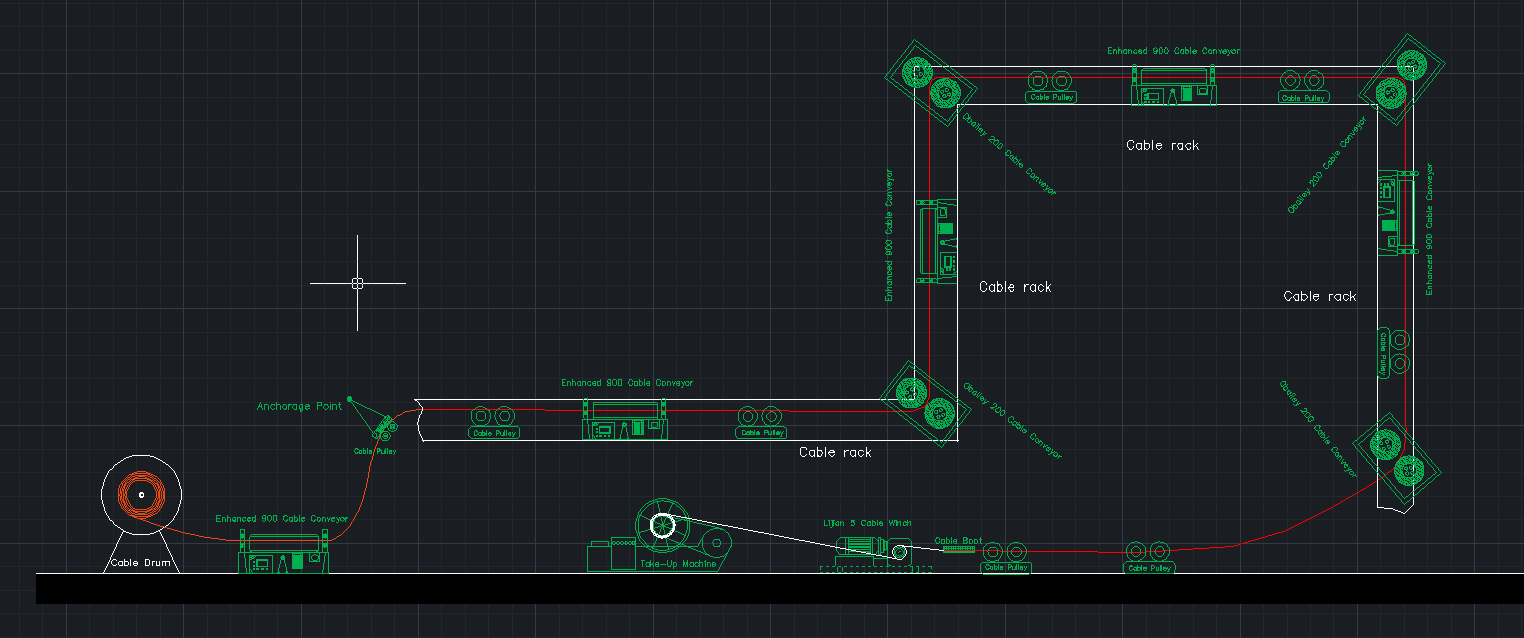

Cable laying solutions
We are not just an equipment supplier, but a cable laying solution provider.We design customized equipment and tools tailored to your project needs, making your construction simpler, more efficient and controllable.
- FRQ
- Q1: Are the traction ratings for your winches inflated? Can they really pull effectively in challenging terrain (such as mountains or muddy conditions)?
- Customer concern: Worries about falsified specifications and the equipment failing under harsh conditions.
- ✅ APEX’s response:
- “Absolutely genuine, and exceeding standards. The rated pulling force figures for APEX winches are not derived from ideal laboratory conditions, but from actual field tests conducted in extreme environments such as the mountainous regions of south-west China and the Gobi Desert in the north-west. To tackle complex terrain, we have independently developed a high-torque adaptive drive system. Following hundreds of on-site refinements, this ensures that power output does not diminish or slip when climbing slopes or encountering increased resistance in muddy conditions. We dare to promise: whatever tonnage is stated on the nameplate, that is exactly what it will pull in real-world conditions—and potentially even more.”
- Q2: Is this equipment assembled or independently developed? What are the key differences compared to other brands on the market?
- Customer pain points: Concerns about purchasing “OEM products”, technological homogenisation, and a lack of after-sales support.
- ✅ APEX’s response:
- “APEX adheres to 100% in-house R&D and rejects simple component assembly. The key distinction from similar products on the market lies in the fact that our core transmission structure and braking system have been iteratively developed based on extensive feedback from frontline construction sites. For example, to address the issues of excessive heat generation and rapid clutch wear common in traditional winches, we have pioneered a [specific technical name, e.g. dual-stage cooling/wear-resistant clutch] structure. This is not merely an upgrade to the equipment, but a technological barrier forged through tens of thousands of hours of practical experience on construction sites, enabling us to better understand the actual demands of the Chinese construction environment.”
- Q3: Is it safe to operate? If there is a sudden power cut or the engine stalls, will the heavy load fall out of control?
- Customer pain point: Zero tolerance for safety incidents; concern regarding emergency braking performance.
- ✅ APEX’s response:
- “Safety is our bottom line. The entire APEX range comes standard with an industrial-grade, normally closed intelligent braking system, which is the result of significant improvements following the analysis of numerous accident cases. In the event of a power cut, engine stalling or operator error, the brake will automatically lock the drum within 0.1 seconds, ensuring ‘fail-safe’ operation. Furthermore, we have added an overload protection warning function to nip potential safety hazards in the bud, allowing you to work at height or with heavy loads without any concerns.”
- Q4: How durable is the equipment? Is maintenance a hassle? Is it prone to breakdowns in harsh site conditions?
- Customer concern: Worried that high failure rates will affect project timelines, and that repairs are difficult.
- ✅ APEX’s response:
- “Designed specifically for ‘rough-and-tumble’ construction site environments. Through preliminary on-site research, we found that traditional equipment suffers from poor sealing and is prone to sand and dust ingress. Therefore, APEX employs military-grade dust-proof sealing and a reinforced alloy steel chassis, extending the service life of key components by over 50%. Regarding maintenance, we have adopted a modular quick-release design, allowing for routine maintenance and the replacement of wear parts without the need for specialised tools. Even in remote locations without electricity or support, repairs can be carried out swiftly, minimising downtime.”
- Q5: Can you provide tailored construction solutions, or do you simply sell machines?
- Customer pain point: Requires a comprehensive solution, not just individual equipment.
- ✅ APEX’s Response:
- “We don’t just sell machines; we provide towing solutions based on real-world experience. Drawing on our extensive database of site practices, we can tailor the optimal equipment selection and rope winding schemes to your specific operating conditions (such as line length, terrain variations and load types), and even provide on-site operational training. Choosing APEX means choosing a team of experts who understand the technology, know the field and can solve problems.”
