Product Overview

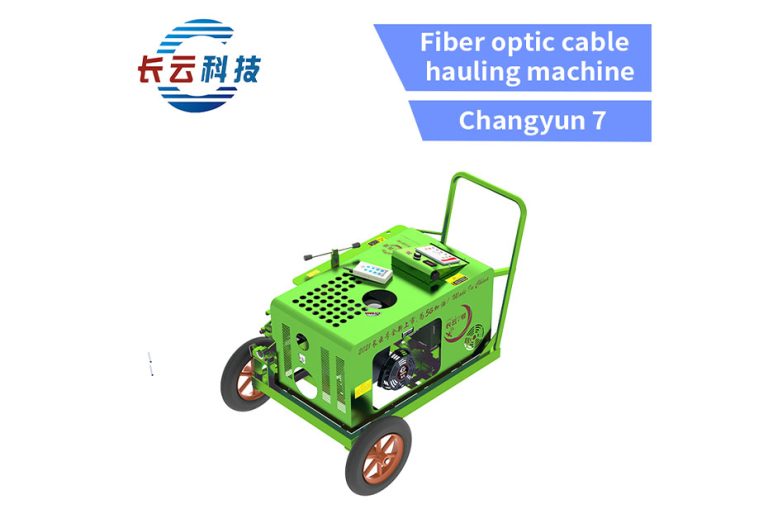

The Apex No.7 Optical Cable Tractor is a gasoline-powered optical cable tractor featuring a vibrant green body with two large wheels and top-mounted handle. Designed for telecom field operations, it delivers 4200N pulling force with dual control options (panel + remote) for efficient cable installation.
Optional Accessories
- Inverter: Powers other tools on-site
- Transformer: Enables silent operation
Technical Parameter
| Model | Apex No.7 Optical Cable Tractor |
| Power System | Premium gasoline engine |
| Motor Power | 1200W |
| Pulling Force | 4200N (max) |
| Control Methods | Panel buttons + wireless remote |
| Transmission | Reinforced crawler belt |
| Speed Range | 0-80m/min |
| Speed Adjustment | 4-gear + stepless |
| Clamping System | Quick-release mechanism |
| Max Cable Opening | 5cm |
| Cable Compatibility | 4-288 core fibers |
| Dimensions | 95×60×80cm |
| Weight | 115kg |
Features & Advantages
Core Features
Dual-Speed Control
Instant operation via panel or remote
Precision Speed Control
4-gear + stepless adjustment
One-Touch Switching
Push-pull mode transition
Cable Protection
Non-damaging reinforced crawler
Portable Design
Compact 115kg construction
Technical Advantages
High-Efficiency Engine
4200N maximum pulling capacity
Wide Speed Range
0-80m/min precise control
Quick Deployment
Instant start/stop functionality
Versatile Application
Adapts to multiple scenarios
Applications
- Long-distance fiber optic deployments
- Underground conduit installations
- Telecom maintenance projects
- Remote area cable pulling







Apex No.7 Optical Cable Tractor: FAQ
Which optical cable sizes are listed for Apex No.7?
The maximum cable opening is 5 cm; the table lists 4–288-core fiber cables. Check actual outside diameter and cable handling limits.
What force and speed are listed?
Maximum pulling force is 4200N, with a 0–80 m/min range and four-gear plus stepless adjustment.
Which controls does No.7 use?
The product lists panel buttons and wireless remote control.
How do I request a quotation or spare parts?
Send the model, cable or load details, required configuration, quantity and destination. For parts, include the machine identification and component photos.
