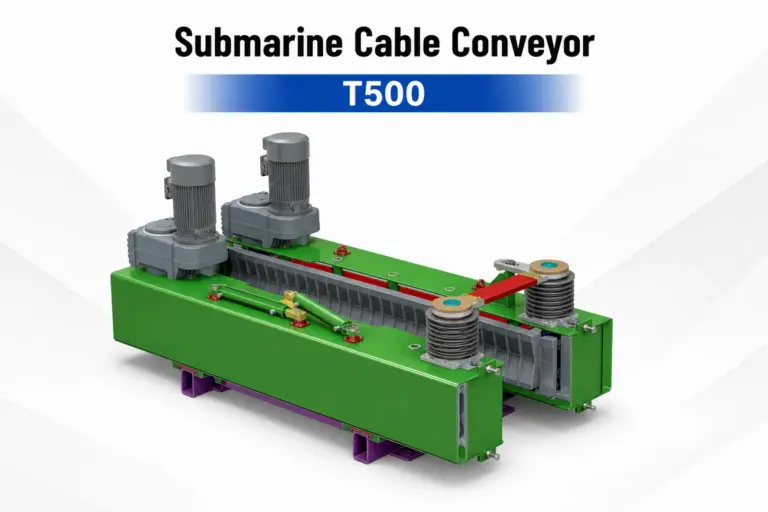

Submarine Cable Conveyor

Main unit power
5.5KW X2
Hydraulic station power
4kw
Main unit dimensions:
2500mm*1200mm*1300mm
Cable conveying traction speed
6m/min

    Product Overview

    This equipment is specifically designed for laying marine cables, large power cables, and heavy-duty optical cables, possessing powerful traction capabilities and precise synchronous control performance. The entire machine adopts a modular design, integrating a dual-transmission mechanism, a high-strength base frame, and an intelligent hydraulic system to ensure stable and continuous cable transport under complex working conditions. The machine consists of two independent left and right transmission mechanisms, arranged symmetrically. The contact surfaces are made of specially designed wear-resistant rubber blocks, which have a high coefficient of friction and excellent wear resistance. The rubber block design not only protects the cable sheath from scratches but also provides sufficient friction in humid and oily environments. Internally, it uses high-strength sprockets and chain drives, which have high transmission efficiency, are easy to maintain, and can adapt to the needs of high-intensity continuous operation. The equipment is equipped with a high-performance variable frequency motor that supports stepless speed regulation. Operators can precisely control the output speed according to the actual laying speed requirements, ensuring smooth start-up and shutdown and preventing cable damage. A built-in braking system provides emergency braking protection to prevent runaway. The motor and transmission mechanism are connected by a high-torque reducer, converting the motor’s high-speed rotation into enormous output torque, providing a solid guarantee for meeting traction requirements. The equipment is equipped with a hydraulic clamping system arranged vertically and horizontally. The hydraulic system applies vertical pressure to the left and right conveying mechanisms. It adjusts and maintains a stable clamping force based on the cable diameter and required traction. This constant pressure ensures that the cable does not slip during high-speed transport and also prevents the cable from being flattened due to excessive pressure. The equipment has an integrated winch structure at the rear, which enables it to function as a winch and provide additional winding traction in long-distance traction or laying scenarios with large elevation differences.

    Application Areas

    • Applications: Power Engineering
      Underground cable installations in pipelines, utility tunnels, and cable trenches with precise tension control. Transportation & Energy Infrastructure
      High-speed rail stations, rail transit systems, new energy power plants, and large oil refineries. Large Infrastructure Projects
      Main power cable installation for nuclear power plants, hydropower stations, and high-rise buildings. Long-Distance Power Transmission
      Direct-burial cable laying and overhead cable-tray installation with controlled pulling force. Power Construction
      Efficient deployment of power cables, fiber-optic cables, and wiring systems across construction sites. New Energy
      Cable installation for wind, hydropower, and solar energy projects.

    Technical Parameter

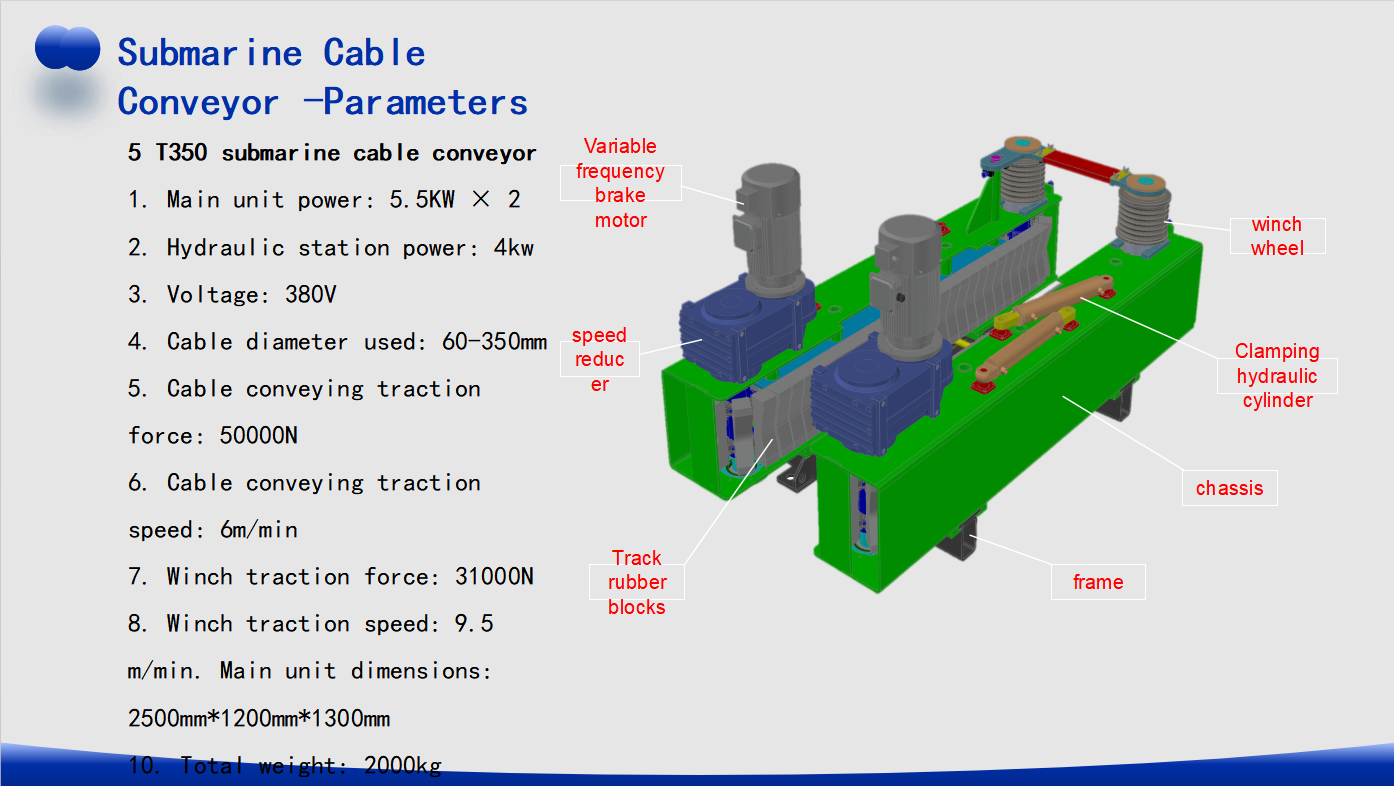

    5T350 submarine cable conveyor specification drawing

    Submarine Cable Conveyor Parameters

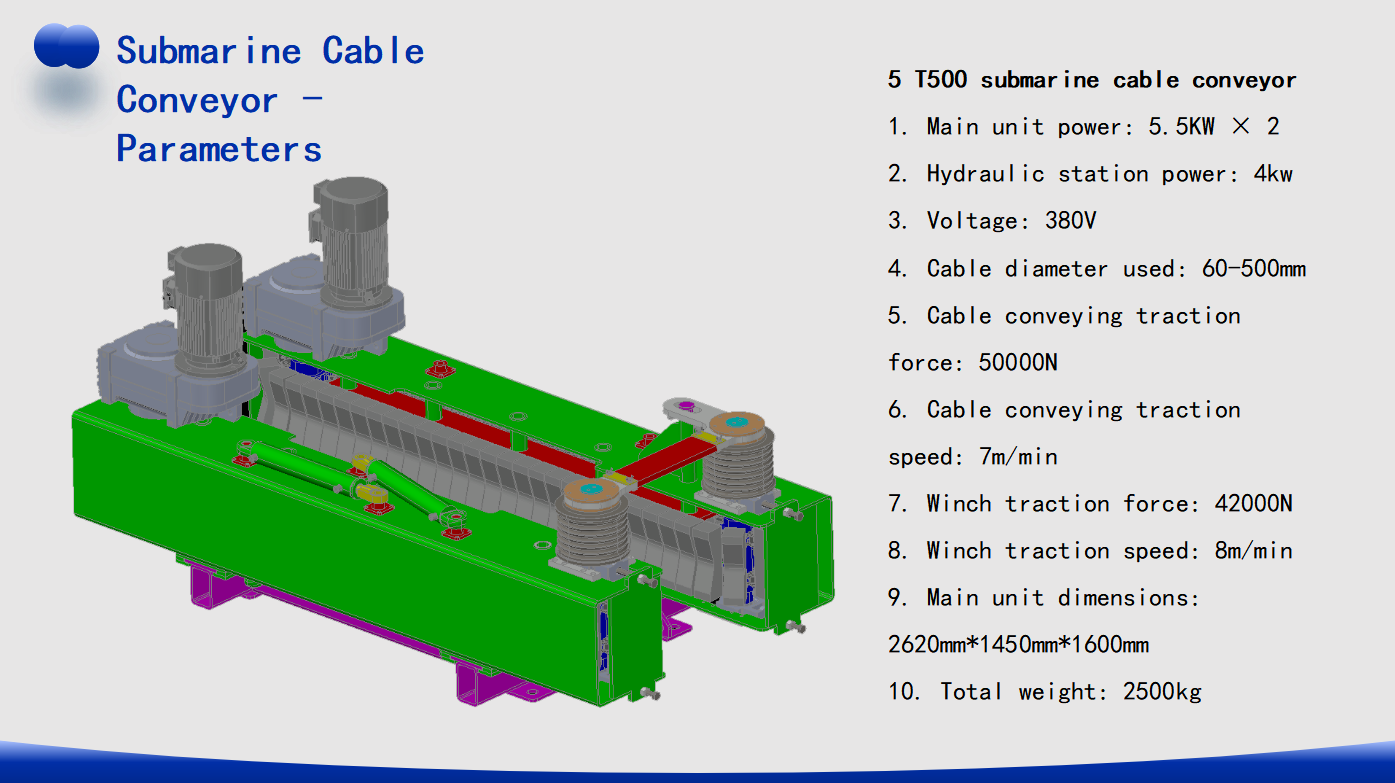

    5T500 submarine cable conveyor specification drawing

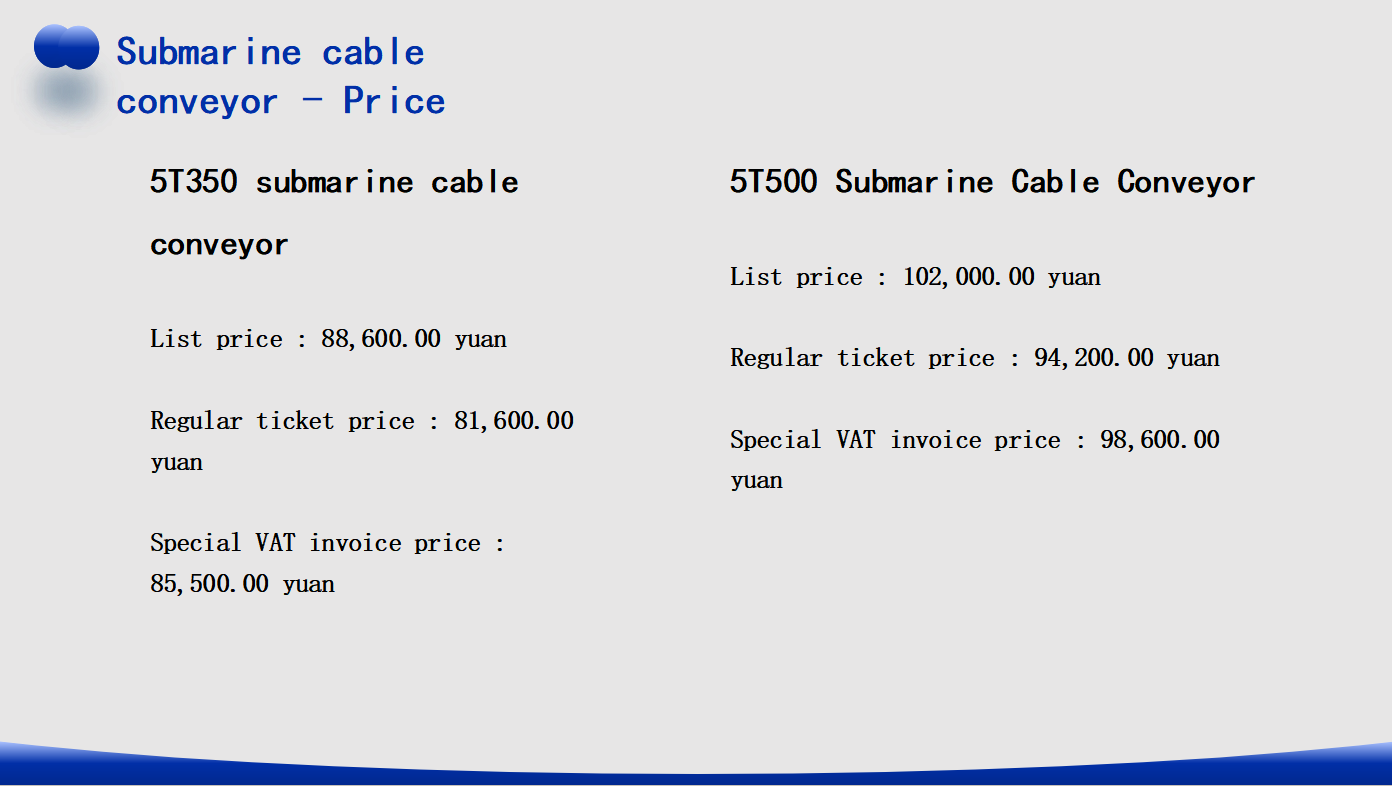

    Submarine cable conveyor – Price

    Original published price illustration for 5T350 and 5T500 submarine cable conveyors

    5T350 and 5T500 Submarine Cable Conveyor Specifications

    The following values are transcribed from the specification drawings already published on this page. Specify the model when requesting a quotation, and confirm the rating definitions and supplied configuration in the current datasheet.

    Published item5T3505T500
    Main unit power5.5 kW × 25.5 kW × 2
    Hydraulic station power4 kW4 kW
    Voltage380 V380 V
    Cable diameter60–350 mm60–500 mm
    Cable conveying traction force50,000 N50,000 N
    Cable conveying traction speed6 m/min7 m/min
    Winch traction force31,000 N42,000 N
    Winch traction speed9.5 m/min8 m/min
    Main unit dimensions2500 × 1200 × 1300 mm2620 × 1450 × 1600 mm
    Total weight2000 kg2500 kg

    Request a Model-Specific Configuration

    Send the cable outer diameter, construction, weight per metre, route and support arrangement, required conveying and winch functions, available power, quantity and delivery destination through the equipment enquiry page. Ask for the force-speed limits, clamping arrangement, accessories and current commercial quotation for the named model.

    For related procurement questions, review our cable conveyor quotation checklist. The original price illustration is retained above; confirm current pricing, tax treatment and delivery terms in your quotation.
