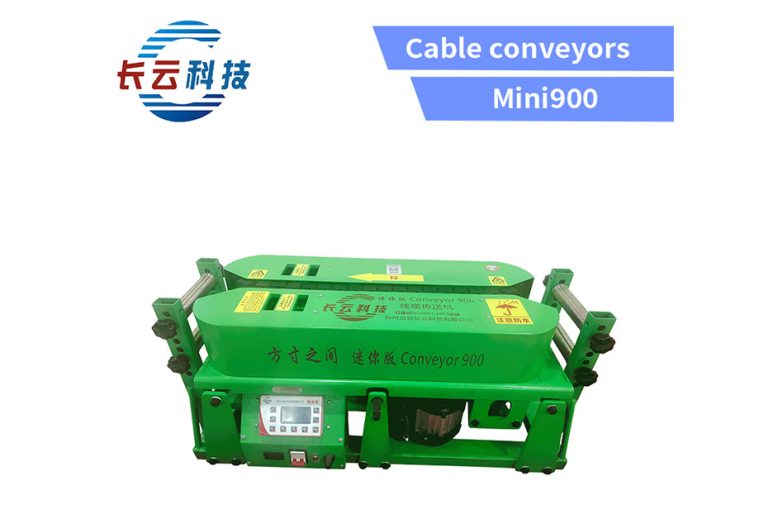

Conveyor 900 Mini Cable Conveyor(Customization)

Model
900 Mini Version
Max Pulling Force
6000N
Weight
182kg
Compact Powerhouse for Professional Cable Installation

    Product Overview

    The Cable Conveyor is driven by electric motors, which transmit power to a set of rubber crawler tracks via a reduction gear mechanism. By adjusting the gap between the left and right tracks, the clamping force applied to the cable can be precisely controlled, thereby propelling the cable forward at a constant speed and ensuring a smooth, damage-free installation process.

    Working Principle

    cable conveyor mini 900

    Driven by an electric motor, the cable conveyor transmits power to the rubber tracks or rollers through a reduction gearbox. The upper and lower tracks clamp the cable with adjustable pressure to generate stable friction, which pushes the cable forward at a constant speed. For long-distance laying, multiple units can work synchronously to provide uniform thrust, ensuring smooth and damage-free cable installation.

    Technical Parameter

    Model 900 Mini Version
    Power Options AC380V (standard) / AC220V (customizable)
    Dual Motors 2×1500W pure-copper core
    Speed Control 4-gear + stepless adjustment (4-26m/min)
    Optimal Speed 10-26m/min (Gear 2 & 3)
    Max Pulling Force 6000N
    Cable Diameter 2-18cm
    Dimensions 107.4×47.4×46cm
    Weight 182kg

    Application Areas

    cable conveyor-3

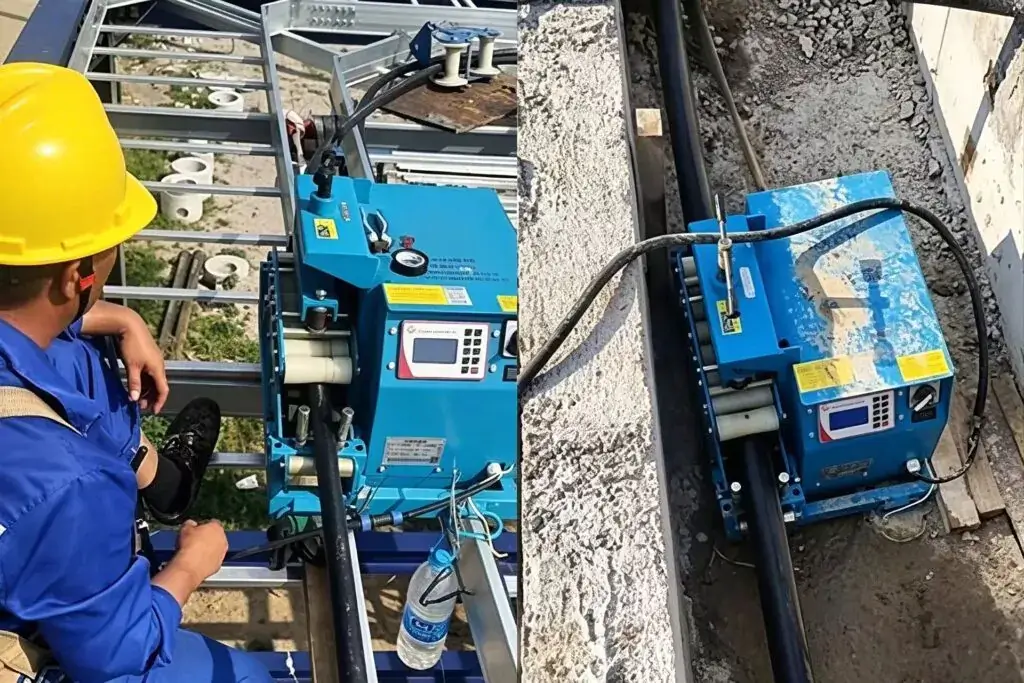

    cable conveyor-900
    cable pusher-900

    Power Engineering: Cable laying projects in underground pipelines, integrated utility tunnels, cable trenches, or tunnels.
    Transportation and Energy Infrastructure: Suitable for high-speed rail stations, rail transit systems, new energy power plants, and large oil refinery projects; cable laying for new projects and cable renovation for existing projects.

    Large Infrastructure Projects: Laying main power cables for nuclear power plants, hydropower stations, and high-rise buildings.

    Long-Distance Power Transmission: Suitable for on-site direct burial cable laying and overhead cable tray installation in long-distance power transmission projects.

    Power Construction: Cable conveying, fiber optic cable conveying, and wire/cable conveying.

    Core Features & Advantages

    Dual-motor drive, high efficiency and labor saving: The thrust of a single machine is equivalent to the pulling force of 10 workers. Multiple machines working together can shorten the construction cycle by 65%.

    Cable protection, safe and reliable: Equipped with flexible tracks or rubber rollers to prevent scratching or twisting of cables, and built-in overload protection effectively reduces construction risks. Ensures high-quality laying.

    Stable and controllable: The conveying speed can be steplessly adjusted within the range of 4–26 m/min, achieving smooth start and stop.

    Flexible and portable: Compact size and light weight, easy to transport in narrow tunnels and manholes.

    Features & Advantages

    Typical Applications

    • Utility manhole cable installations
    • Telecommunication network deployments
    • Confined space power projects
    • Industrial facility maintenance
    01
    03
    04
    05
    06
    07

    Conveyor 900 Mini Cable Conveyor(Customization): FAQ

    What makes the 900 Mini a different configuration?

    Its table lists a 2–18 cm cable range, two 1500W motors and a machine weight of 182 kg.

    What electrical versions are listed?

    AC380V is standard and AC220V is customizable. State the required supply in your order.

    What force and speed are listed?

    Maximum pulling force is 6000N; four-gear and stepless speed adjustment covers 4–26 m/min.

    How do I request a quotation or spare parts?

    Send the model, cable or load details, required configuration, quantity and destination. For parts, include the machine identification and component photos.

    Request this model’s configuration and quote

    900 Mini Selection and Configuration

    Check access against the listed 107.4 × 47.4 × 46 cm dimensions and 182 kg weight. Include cable specifications, route length, bends and the required voltage.

    Which cable sizes are listed for the 900 Mini?

    The listed cable diameter range is 2–18 cm and the maximum pulling force is 6000N. Cable weight, route resistance and allowable handling loads also matter.

    What power configuration does the 900 Mini use?

    The table lists AC380V as standard and AC220V as customizable, with two 1500W motors. Confirm your chosen power configuration in the quotation.

    What controls and speed are listed for this model?

    The full speed range is listed as 4–26 m/min with four gears and stepless adjustment. Confirm the selected controller and operating settings for the cable.

    Request a 900 Mini Quote

    Send cable diameter, weight per metre, route length, bends, power availability, quantity and delivery destination. Request a quote on WhatsApp or send your project enquiry. Include the model name so we can discuss its configuration.

    Compare cable conveyors and cable pushers and review our equipment selection checklist.

    Keep a 900 Mini Configuration and Handover Record

    For repeat projects, keep the machine’s serial number and nameplate photo with the order confirmation. Record the actual supplied voltage, controller identification and connection accessories so the next crew can identify the delivered configuration.

    • Attach the supplied operating and maintenance instructions to the equipment record.
    • List the controller, linking leads and other ordered accessories stored with the unit.
    • Record visible damage, reported faults and service completed before the next deployment.
    • Confirm packed dimensions and gross shipping weight when planning transport; these differ from bare-machine dimensions and weight.

    Review the between-project storage and handover checklist. Request the correct 900 Mini documentation or parts with the serial number and identification photos. Before another installation, confirm the new cable and site conditions against the supplied instructions.
