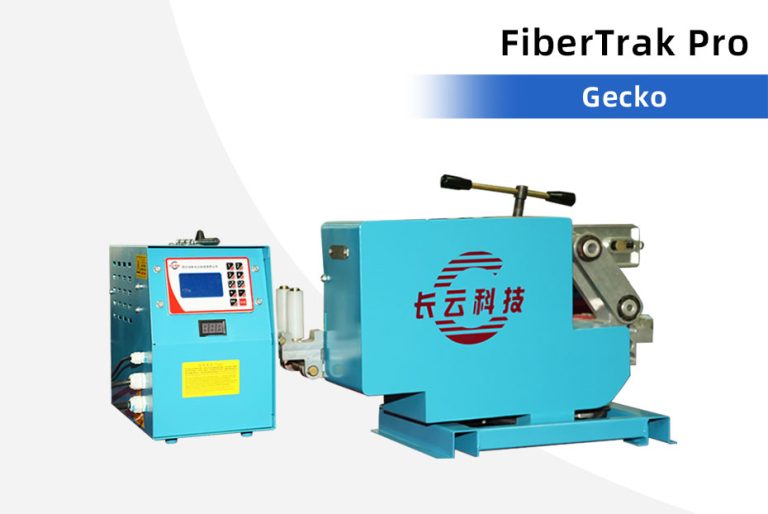

Gecko Series Multi-layer Cable Tray Conveyor

Model
Gecko
Power Input
AC220V/380V (Standard)
Manufacturer
keepapexpower

    Product Overview

    The Gecko Series Multi-layer Cable Tray Conveyor is designed for cable installation where tray access and mounting space need careful planning. Its published specification lists 785W power, a speed range of 3–12 m/min and a cable diameter range of 1–6 cm. The product description includes horizontal, overhead and side-mounted arrangements; confirm the mounting method, support structure and clearances for the intended installation.

    Technical Parameter

    Speed Range 3-12 m/min
    Control Modes Standalone control / Multi-unit synchronized control
    Power 785W
    Rated Tension 1400N
    Cable Diameter Compatibility 1-6 cm
    Compact Dimensions (L×W×H) 67×27×39 cm (including base frame)
    Weight  Suspension unit: 29 kg  With base frame: 32 kg

    Advantages & Components

    01
    02
    03
    04
    05
    06
    07

    Frequently Asked Questions

    Which cable diameters are listed for the Gecko conveyor?

    The parameter table lists 1–6 cm. Cable construction, weight and handling limits must also be considered when choosing the equipment.

    What space and weight should I plan for?

    The published dimensions are 67 × 27 × 39 cm including the base. The listed weight is 29 kg for the suspension arrangement and 32 kg with the base. Confirm the actual mounting configuration and support requirements before installation.

    Does the Gecko support multi-unit control?

    The product specification lists standalone operation and multi-unit synchronized control. Request confirmation of controller compatibility and the supplied accessories for your proposed layout.

    What information is needed for a quotation?

    Send cable diameter, weight per metre, tray dimensions, tray levels, available clearances, mounting position, route length, bends, power supply, quantity and destination.

    Request a Product Configuration and Quote

    Send your project details through our equipment enquiry page. Review our equipment selection and service checklist or compare cable conveyors and cable pushers.

    Plan the Mounting Arrangement Before Ordering

    The Gecko cable tray conveyor lists a 29 kg suspension unit and a 32 kg configuration with the base frame. Its 67 × 27 × 39 cm dimensions include the base frame. Specify which arrangement your quotation should cover; these figures are not an approval of the supporting tray or brackets.

    • Mounting and support: Send a tray elevation and photos of the proposed attachment points. Request the relevant mounting drawing, accessory list and support-load information for review by the person responsible for the structure.
    • Cable path: Mark the feeder centreline, entry and exit guides, tray-level changes and existing obstructions. Confirm the cable manufacturer’s handling limits.
    • Control scope: The listed 3–12 m/min range and synchronized-control option do not establish compatibility with other equipment. Identify every machine and controller in your enquiry.

    Prepare your enquiry using the multi-layer cable tray mounting and support checklist. For operating-range comparisons, read fixed versus variable cable conveyor speed.

    Request a Gecko configuration quote with the cable data sheet, route and tray drawings, supply details, quantity and delivery destination.
