Hydraulic Pullers for Overhead Line Stringing
SA-QY-50 Hydraulic Puller
· Mainly used for stringing and deployment ofconductors, string ropes, OPGW, or AESS and otheroptical cables at 220kV and below.. Stringing and deployment for lines below 500kV.
SA-QY-150 Hydraulic Puller· Mainly used for tension and deployment ofconductors and string ropes at 500kV and below.
SA-QY-250 Hydraulic Puller
Mainly used for deployment of conductors and stringropes at 1000kV,+800kV and below.
SA-QY-80 Hydraulic Puller.Mainly used for tension and deployment of conductors,string ropes, OPGW, or AESS and otheroptical cables at 220kV and below.
SA-QY-180 Hydraulic Puller.Mainly used for tension and deployment of conductorsand string ropes at 500kV and below.
SA-QY-350 Hydraulic Puller. Mainly used for tension and deployment of conductorsand string ropes with large spans at 1000kV, +800kVand below.

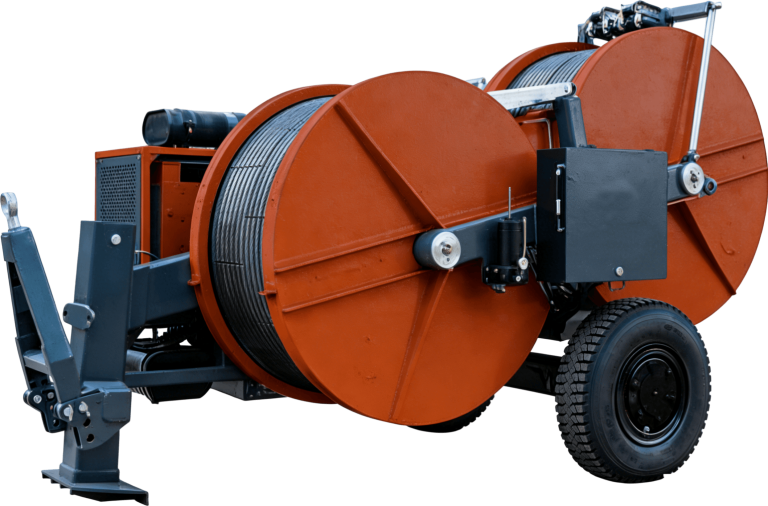

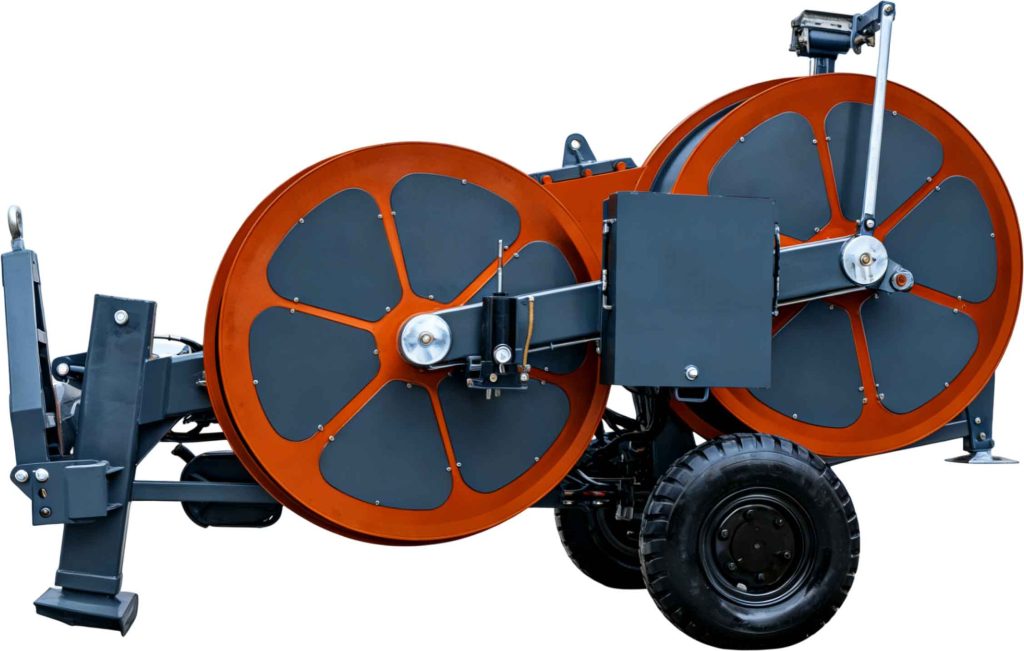

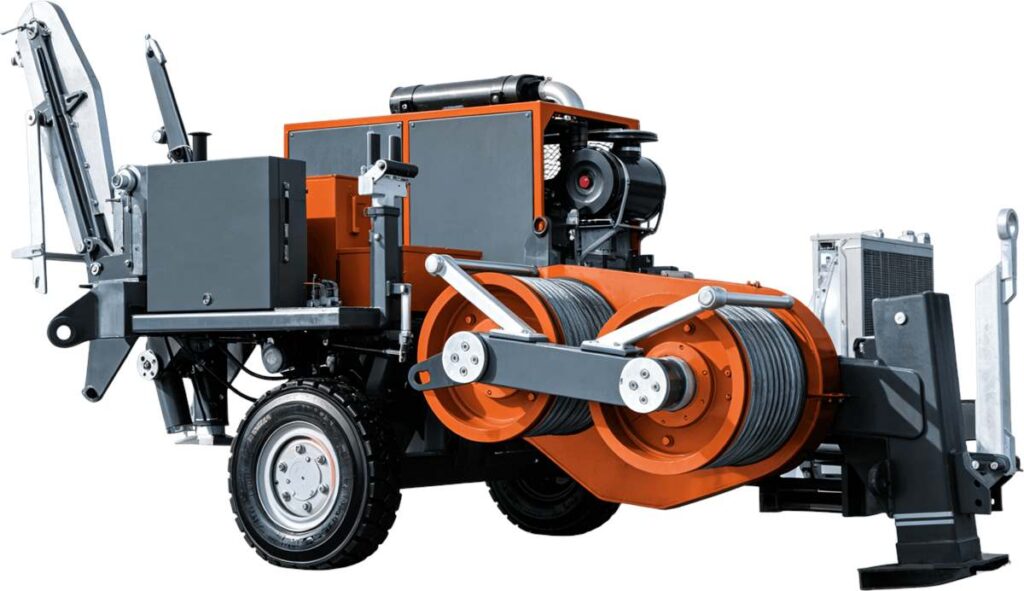

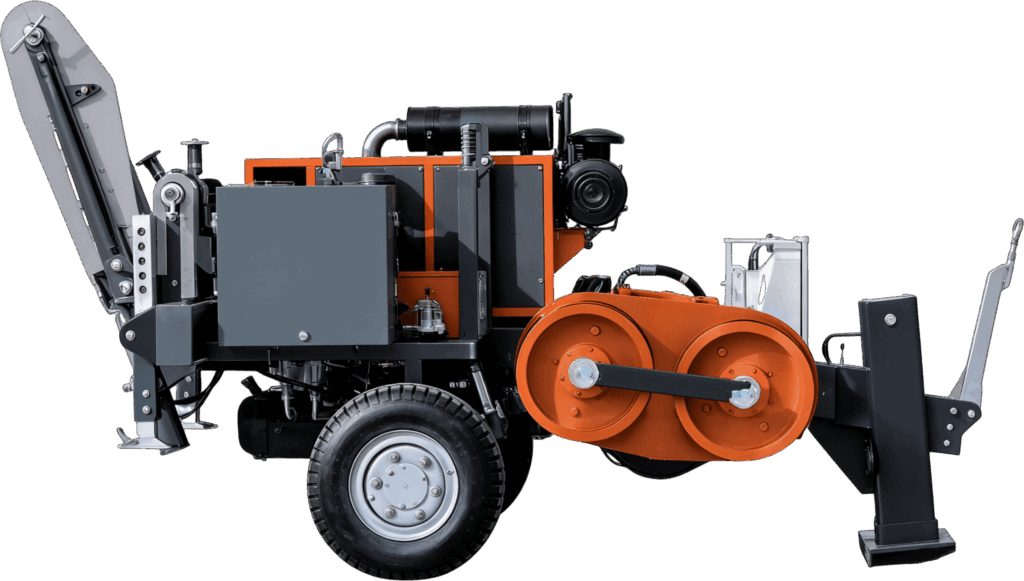

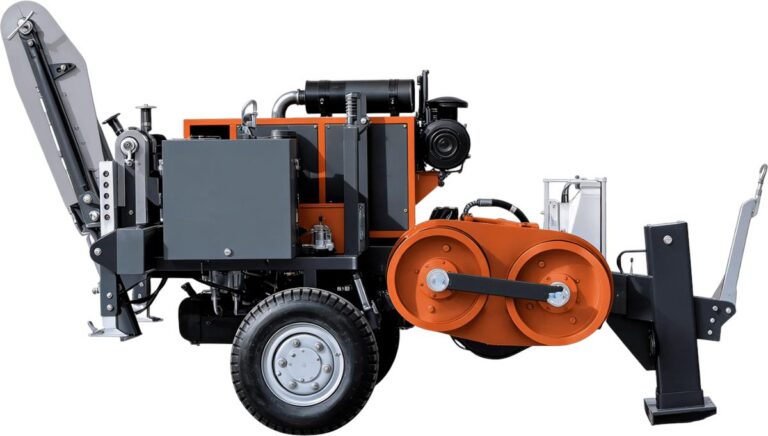

Equipment Images and Specification Confirmation

Hydraulic Puller Selection for Overhead Line Stringing
The SA-QY hydraulic puller range is intended for overhead line stringing projects. Choose equipment against the project requirements and the confirmed specification of the exact model, not the model number or line voltage alone.
Puller, tensioner or cable conveyor?
A hydraulic puller provides the pulling function in a stringing system. A hydraulic tensioner provides controlled resistance during conductor pay-off. A cable conveyor feeds cable along an installation route and is a different equipment type. Confirm whether the project calls for separate machines or an approved combined configuration.
Information needed for a hydraulic puller quotation
Send the conductor or optical cable type, diameter, weight, number of conductors, line layout, span lengths, terrain and site access. Include the required pulling force and operating speed from the project plan, pulling rope details, drum arrangements and delivery destination.
Compare the complete stringing system
Check the pulling machine, tensioning equipment, rope handling equipment and stringing accessories as a coordinated system. Confirm rope diameter compatibility, continuous and maximum ratings, operating speed at the required load, and transport dimensions in the model-specific quotation.
Hydraulic Puller Questions
Which SA-QY model is suitable for my project?
The model list above is an initial reference. Send the project information to our team for a model-specific proposal. A voltage class alone does not establish the required pulling capacity.
Can the equipment be used for OPGW installation?
Some applications listed above include OPGW. Compatibility must be confirmed for the exact equipment configuration and the optical cable manufacturer’s installation requirements before ordering.
Where can I confirm technical specifications?

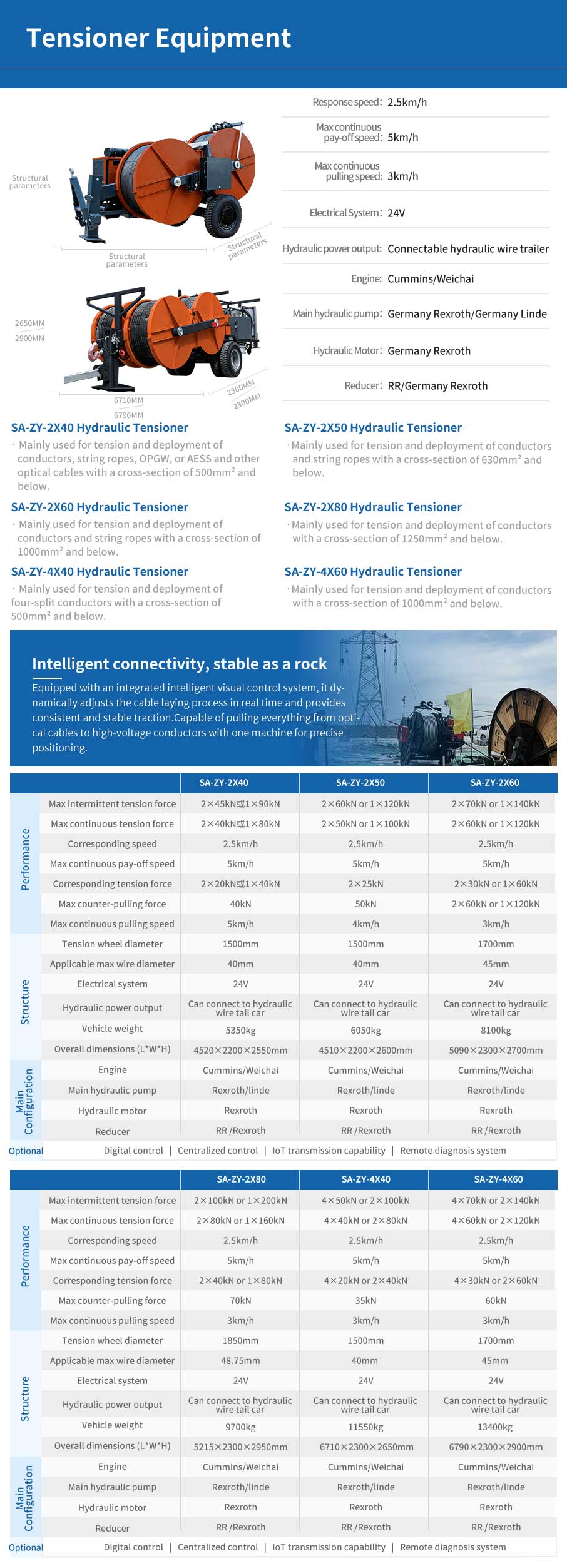

The images on this page show the equipment; they are not a complete specification sheet. Request the current model datasheet for pulling force, rope capacity, operating speed, power system, dimensions and weight. Do not infer force ratings from a model number.
How do I request equipment selection and pricing?
Use our equipment quotation form to share your project details, preferred model, quantity and delivery destination. See equipment selection and support for the information needed for overhead and underground installations.
