SA-ZY Hydraulic Tensioners for Conductor Stringing

Response speed
2.5km/h
Max continuous pay-off speed
5km/h
Max continuous pulling speed
3km/h
Intelligent connectivity, stable as a rock

    Hydraulic Tensioner Overview

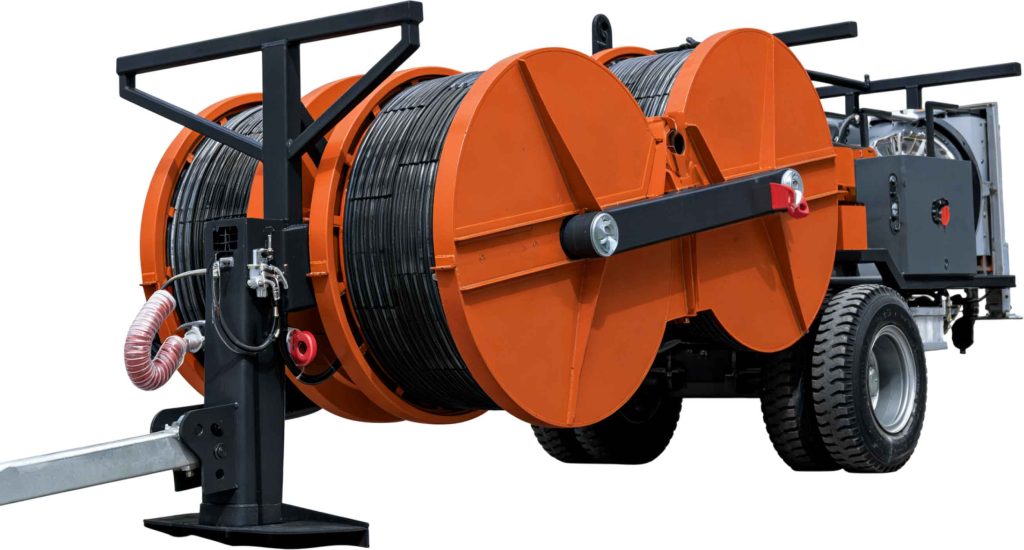

    SA-ZY-2×40 Hydraulic Tension Machine

    This model is primarily designed for tension deployment of optical cables with cross-sections of 500 mm² or less, including conductors, traction ropes, OPGW, or AESS systems.

    SA-ZY-2×50 Hydraulic Tension Machine

    Primarily used for tension deployment of conductors and traction ropes with a cross-section of 630 mm² or less.

    SA-ZY-2×60 Hydraulic Tension Machine

    Primarily used for tensioning and laying conductors and traction ropes with a cross-section of 1000 mm² or less.

    SA-ZY-4×40 Hydraulic Tension Machine

    Primarily used for tension deployment of conductors with a cross-section of 500 mm² or smaller in quadrifurcation configurations.

    SA-ZY-4×60 Hydraulic Tension Machine

    Primarily used for tension deployment of conductors with a cross-section of 1000 mm² or less.

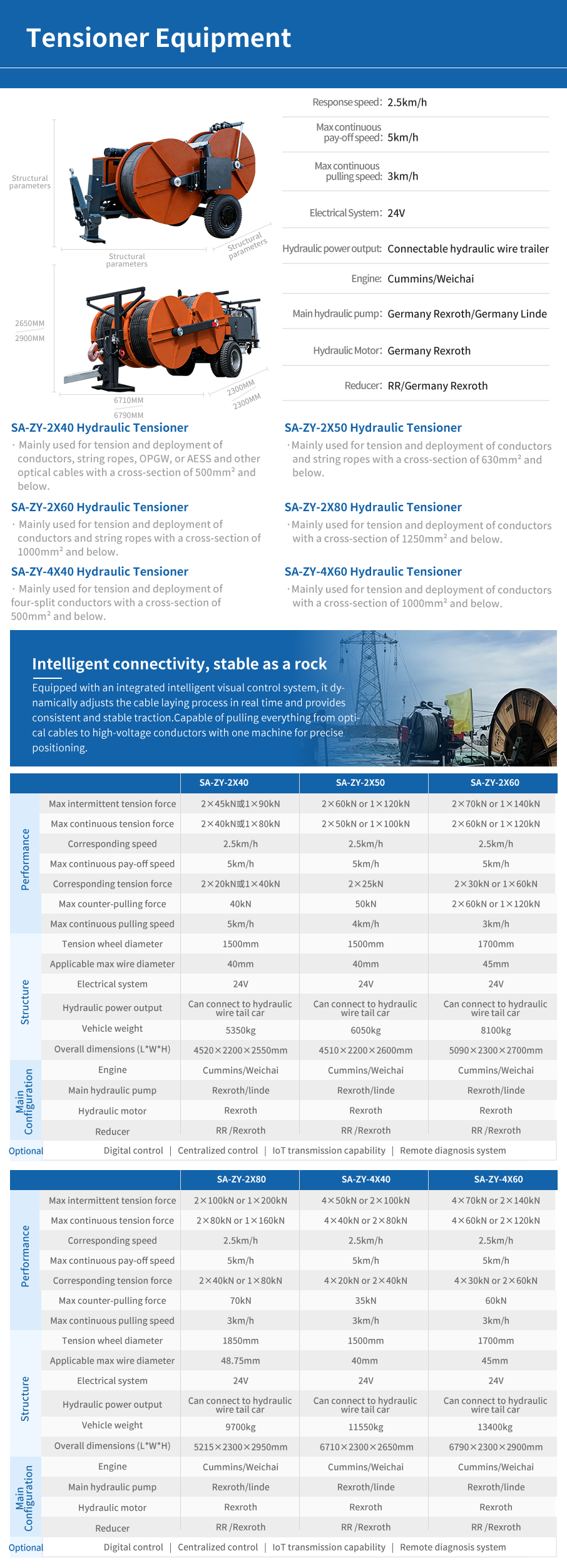

    Technical Parameter

    Hydraulic Tensioners for Conductor Stringing

    The SA-ZY range provides tensioning equipment for overhead conductor installation. This page lists the available model families and catalogue information; confirm the supplied configuration and project compatibility when requesting a quotation.

    What is the difference between a puller and a tensioner?

    A hydraulic puller draws the pulling rope through the stringing route, while a tensioner controls resistance as conductor is paid off. Do not assume a tensioner has puller functionality unless the supplied model explicitly supports it.

    Choose equipment around the conductor arrangement

    Send the number of conductors to be strung, conductor diameter and cross-section, required continuous tension, planned pay-off speed, span layout and reel details. The quoted machine, conductor-contact wheels and reel-handling equipment must suit the project.

    Confirm catalogue specifications before ordering

    Request the current model-specific datasheet and configuration list. Confirm continuous versus intermittent tension, single- or multi-conductor configuration, wheel diameter, conductor diameter limits, dimensions and weight. Options shown in the catalogue are not automatically included in every machine.

    Request a matched puller and tensioner quotation

    Share the line layout and equipment requirements through our contact page. Compare the SA-QY hydraulic puller range and hydraulic equipment category without treating all listed accessories as pulling machines.
