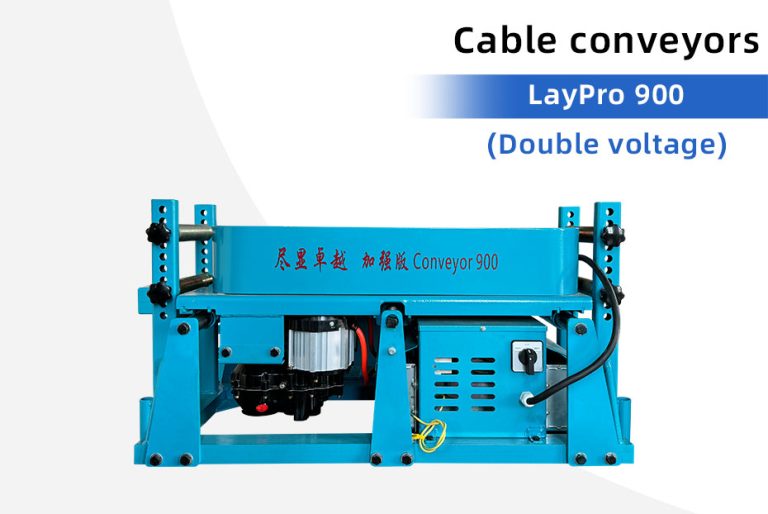

LayPro 900 Double voltage Cable Conveyor

Model
LayPro 900 Double voltage
Power Supply
AC380V (standard)
Operating Voltage
AC380V
keepapexpower Innovating Cable Installation Solutions

    Product Introduction

    The Cable Conveyor is driven by electric motors, which transmit power to a set of rubber crawler tracks via a reduction gear mechanism. By adjusting the gap between the left and right tracks, the clamping force applied to the cable can be precisely controlled, thereby propelling the cable forward at a constant speed and ensuring a smooth, damage-free installation process.

    Working Principle

    cable conveyor-900

    Driven by an electric motor, the cable conveyor transmits power to the rubber tracks or rollers through a reduction gearbox. The upper and lower tracks clamp the cable with adjustable pressure to generate stable friction, which pushes the cable forward at a constant speed. For long-distance laying, multiple units can work synchronously to provide uniform thrust, ensuring smooth and damage-free cable installation.

    Technical Parameter

    Model LayPro 900 Double voltage
    Power Supply AC380V/AC220V (standard)
    Operating VoltageAC380V/AC220V
    Power 1.8KW × 2 (dual motor)
    Conveying Speed 4-36m/min (optimal 16-26m/min in Gear 2-3)
    Max Pulling Force 8000N
    Cable Diameter 2-24cm
    Dimensions106.4X57X53cm
    Weight 214kg

    Application Areas

    cable conveyor-3
    cable conveyor-900
    cable conveyor-900-1

    Power Engineering: Cable laying projects in underground pipelines, integrated utility tunnels, cable trenches, or tunnels.
    Transportation and Energy Infrastructure: Suitable for high-speed rail stations, rail transit systems, new energy power plants, and large oil refinery projects; cable laying for new projects and cable renovation for existing projects.

    Large Infrastructure Projects: Laying main power cables for nuclear power plants, hydropower stations, and high-rise buildings.

    Long-Distance Power Transmission: Suitable for on-site direct burial cable laying and overhead cable tray installation in long-distance power transmission projects.

    Power Construction: Cable conveying, fiber optic cable conveying, and wire/cable conveying.

    Core Features & Advantages

    Dual-motor drive: Two motors drive the cable conveying mechanism. Discuss machine positioning and control compatibility when planning a multi-unit installation.

    Cable protection, safe and reliable: Equipped with flexible tracks or rubber rollers to prevent scratching or twisting of cables, and built-in overload protection effectively reduces construction risks. Ensures high-quality laying.

    Operating settings: Confirm the speed range for the supplied configuration, and set conveying speed in accordance with the equipment manual and cable handling limits.

    Flexible and portable: Compact size and light weight, easy to transport in narrow tunnels and manholes.

    Features & Applications

    01
    02
    03
    04
    05
    06
    07

    LayPro 900 Dual-Voltage Selection

    Considering the LayPro 900 dual-voltage configuration? Confirm the exact voltage, phase, frequency and connection arrangement in the quotation and on the supplied unit. The model name does not mean that every unit can be connected to either supply without configuration.

    Compare installation requirements, not only model names

    Compare this unit with LayPro 900 Strengthen for electrically supplied sites. If machine mobility and a gasoline-powered configuration are relevant, review the Tank 900 crawler cable conveyor. Confirm the final configuration against cable diameter and weight, route bends, supports, site access and available power.

    Prepare your cable installation enquiry

    Send a route sketch, cable details, required installation force, cable handling limits, machine quantity and destination through our quotation contact page. Use the cable installation project checklist to prepare the information needed for model selection.

    LayPro 900 Dual-Voltage Cable Conveyor: Frequently Asked Questions

    What information is needed to select a cable conveyor?

    Provide the cable diameter, cable weight, route length, bends, installation method and available power supply. Equipment selection should also take account of the cable manufacturer’s allowable pulling tension and bending radius.

    Which electrical supply should I prepare?

    Confirm the voltage, phase, frequency and control configuration for the exact unit before ordering. Do not connect equipment based only on a model name; follow the supplied operating instructions and electrical rating plate.

    Can several conveyors be used along one cable route?

    Discuss the route layout, machine spacing and control compatibility with our team. Multi-unit arrangements require project-specific planning; do not assume every unit supports synchronized control.

    How should conveying speed and clamping pressure be set?

    Follow the equipment manual and cable manufacturer’s handling limits. Check alignment and support along the route, and select operating settings appropriate to the cable and installation conditions.

    How can I request a quotation?

    Send your preferred model, quantity, cable details, power supply and delivery destination through our contact page. You can also compare our cable conveyor range.

    LayPro 900 Dual-Voltage or Strengthen: Which Configuration?

    The published LayPro 900 Double voltage table lists AC380V/AC220V, dual 1.8kW motors and a 4–36 m/min conveying range. Its listed maximum pulling force is 8000N and cable diameter range is 2–24 cm.

    The LayPro 900 Strengthen table also lists dual 1800W motors, 8000N and 2–24 cm cables. It describes AC380V as standard, AC220V as customizable, and a 0–26 m/min adjustable range. Confirm the exact delivered voltage and control arrangement when comparing offers.

    Include the Supply Version in Your Enquiry

    Send the available voltage, frequency, phase and supply-capacity details with your cable data sheet. Ask how the quoted dual-voltage configuration is selected and what electrical equipment is included. The voltage label alone does not authorize changing connections on site.

    Review our cable conveyor speed comparison and quotation checklist, then request the LayPro 900 Double voltage configuration with your intended working speed, route details, quantity and destination.
