LayPro 900 Strengthen Cable Conveyor

Model
LayPro 900 Strengthen Cable Conveyor
Max Pulling Force
6000N
Net Weight
210kg
keepapexpower Innovating Cable Installation Solutions

    Product Overview

    The cable conveyor—also known as a cable pusher—is a motorized mechanical device designed for cable laying operations. It is specifically engineered for the installation of long-distance, large-cross-section power cables. Its primary objective is to replace manual handling, enabling the smooth and efficient propulsion of cables into conduits, tunnels, and cable trays. This results in increased operational efficiency and reduced labor costs.

    Working Principle

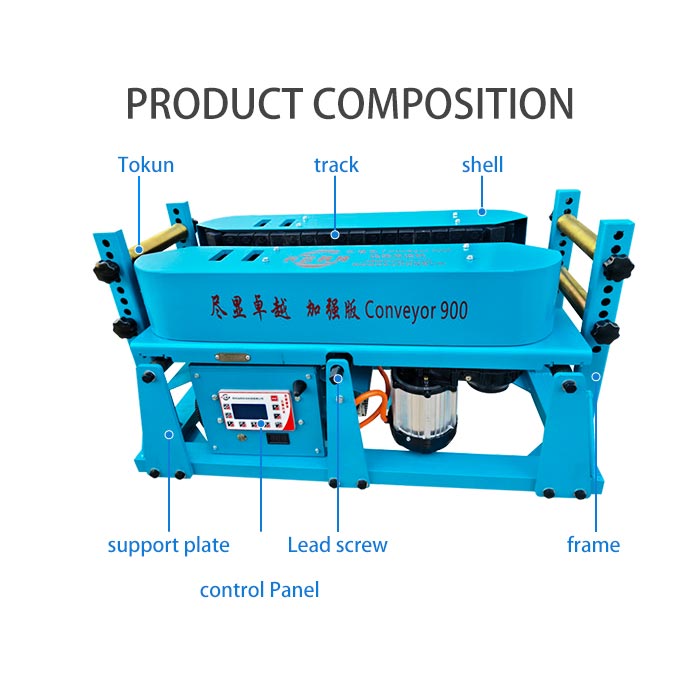

    cable conveyor-900

    The cable conveyor is driven by an electric motor, which transmits power to a set of rubber crawler tracks via a reduction gear mechanism. By adjusting the gap between the left and right tracks, the clamping force applied to the cable can be precisely controlled. This allows the machine to propel the cable forward at a constant speed, ensuring a smooth, damage-free installation process.

    Technical Parameter

    Power Supply AC380V (standard) / AC220V (customizable)
    Dual Motors 2×1800W pure-copper core
    Max Pulling Force 8000N
    Cable Compatibility 2-24cm diameter
    Speed Control 4-gear + stepless speed adjustment (0-26m/min)
    Optimal Speed Range 10-16m/min (Gear 2 & 3)
    Dimensions 107×57×53cm
    Net Weight 214kg

    Application Areas

    Power Engineering: Cable laying projects within underground conduits, integrated utility tunnels, cable trenches, or tunnels.
    Transportation & Energy Infrastructure: Suitable for high-speed rail stations, urban rail transit systems, new energy power plants, and large-scale refinery projects; applicable to both cable installation in new construction and cable retrofitting in existing facilities.
    Large-Scale Infrastructure Projects: Ideal for laying main power cables in nuclear power plants, hydroelectric power stations, and high-rise buildings.
    Long-Distance Power Transmission: Suitable for on-site direct-burial cable laying and overhead cable tray installation in long-distance power transmission projects.
    Power Construction: Laying of fiber optic cables, power cables, and building wiring.

    Key Features & Advantages

    Flexible and Portable: Compact in size and lightweight, facilitating easy handling within narrow tunnels and manholes.

    Dual-Motor Drive: Two motors drive the cable conveying mechanism. Discuss machine positioning and control compatibility when planning a multi-unit installation.

    Cable Protection—Safe & Reliable: Equipped with flexible tracks or rubber rollers to prevent scratching or twisting of the cable; features built-in overload protection to effectively mitigate construction risks. Ensures high-quality cable laying.

    Operating settings: Confirm the speed range for the supplied configuration, and set conveying speed in accordance with the equipment manual and cable handling limits.

    Features & Applications

    01
    02
    03
    04
    05
    06
    07

    LayPro 900 Strengthen Selection

    Compare the LayPro 900 Strengthen against the required cable size, installation force and route conditions. The Strengthen name is not a substitute for the exact rated specification, and figures from another LayPro version should not be assumed to apply.

    Compare installation requirements, not only model names

    Compare this unit with LayPro 900 dual-voltage for electrically supplied sites. If machine mobility and a gasoline-powered configuration are relevant, review the Tank 900 crawler cable conveyor. Confirm the final configuration against cable diameter and weight, route bends, supports, site access and available power.

    Prepare your cable installation enquiry

    Send a route sketch, cable details, required installation force, cable handling limits, machine quantity and destination through our quotation contact page. Use the cable installation project checklist to prepare the information needed for model selection.

    LayPro 900 Strengthen Cable Conveyor: Frequently Asked Questions

    What information is needed to select a cable conveyor?

    Provide the cable diameter, cable weight, route length, bends, installation method and available power supply. Equipment selection should also take account of the cable manufacturer’s allowable pulling tension and bending radius.

    Which electrical supply should I prepare?

    Confirm the voltage, phase, frequency and control configuration for the exact unit before ordering. Do not connect equipment based only on a model name; follow the supplied operating instructions and electrical rating plate.

    Can several conveyors be used along one cable route?

    Discuss the route layout, machine spacing and control compatibility with our team. Multi-unit arrangements require project-specific planning; do not assume every unit supports synchronized control.

    How should conveying speed and clamping pressure be set?

    Follow the equipment manual and cable manufacturer’s handling limits. Check alignment and support along the route, and select operating settings appropriate to the cable and installation conditions.

    How can I request a quotation?

    Send your preferred model, quantity, cable details, power supply and delivery destination through our contact page. You can also compare our cable conveyor range.

    Specify the LayPro 900 Strengthen Version

    The Strengthen specification lists AC380V as standard and AC220V as customizable. Its dual 1800W motors, listed 8000N maximum pulling force and 2–24 cm cable diameter range should be checked together with the proposed route and control system.

    Compare the Working Range, Not Just Motor Power

    The Strengthen table gives four-gear and stepless speed adjustment over 0–26 m/min, with 10–16 m/min listed for gears 2 and 3. The separate LayPro 900 Double voltage page lists 4–36 m/min and AC380V/AC220V. These catalogue entries identify different configurations to discuss with the supplier; they do not establish which speed is permitted for your cable.

    Confirm What the Quote Includes

    • State whether you need the standard supply or a customized electrical version.
    • Identify the controllers and other machines that must work with this unit.
    • Request the supplied accessory list, operating instructions and model-specific working limits.

    Use the cable conveyor buying checklist and fixed versus variable speed guide before sending your cable diameter, weight per metre, route, supply, quantity and destination through the project enquiry page.

    LayPro 900 Strengthen: Force and Parts Checklist

    Does 8000N specify the permitted cable load?

    The 8000N figure is the machine’s listed maximum pulling force. Cable handling limits and the proposed installation arrangement need a separate review. Send the cable datasheet and route drawing with your enquiry.

    Which details identify the correct spare parts?

    Provide the machine model, production or serial identification, electrical rating plate and clear component photos. Ask for matching part numbers and the supplied controller version before ordering replacements.

    Read our cable conveyor force-rating guide and model-specific spare-parts checklist. The Strengthen table lists dual 1800W motors, a 0–26 m/min adjustable conveying range and a 2–24 cm cable diameter range. Confirm the exact electrical version and accessory schedule with the quotation.

    Request a LayPro 900 Strengthen configuration and parts list with your quantity and delivery destination.
